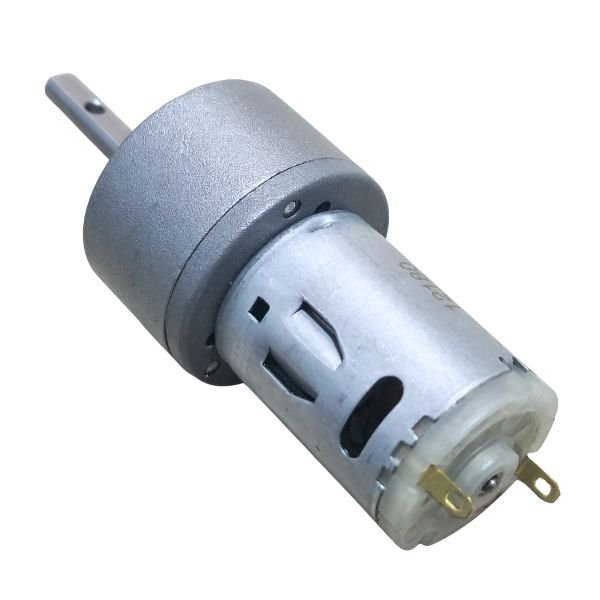

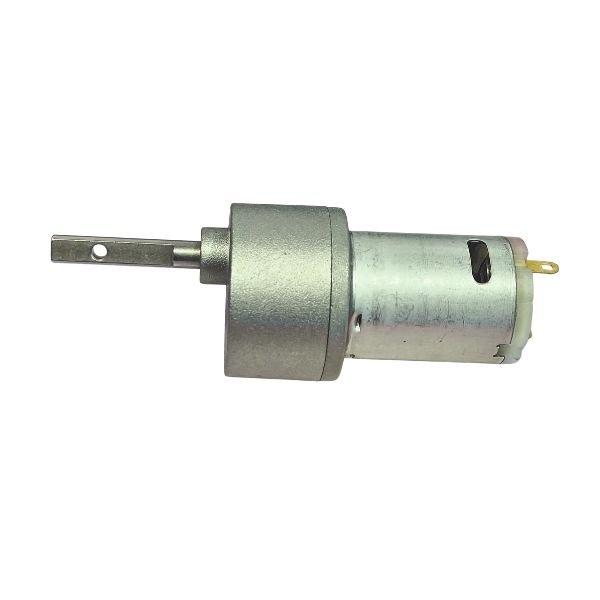

The 300 RPM Johnson Motor A Grade is a high-quality, durable DC geared motor designed for demanding applications in robotics, automation, and industrial projects. Featuring a robust metal gearbox and metal gears, this motor ensures superior torque output and long-lasting performance. Its off-centered shaft with an M3 threaded hole allows flexible mounting options, making it ideal for precision drives and heavy-duty tasks.
Features:
-
High-torque 300 RPM rated speed at 12V input
-
Premium Grade A motor with superior build quality and reinforced metal gearbox
-
Metal bushings on shaft for enhanced wear resistance and durability
-

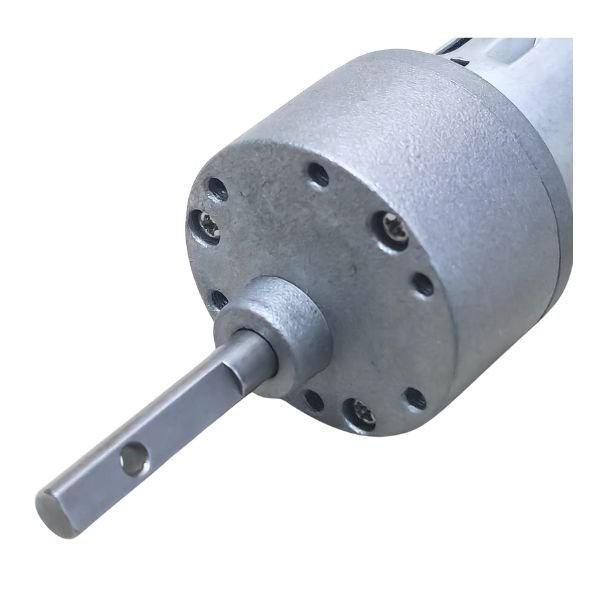

Off-centered 6mm diameter shaft with threaded hole for easy coupling
-
Provides up to 9 kg-cm holding torque for heavy load applications
-
Smooth and consistent operation with low noise
-
Suitable for robotics, automation systems, and industrial equipment
Specifications:
| Parameter | Value |
|---|---|
| Motor Type | DC Geared Motor |
| Rated Voltage | 12V DC |
| Rated Speed | 300 RPM |
| Base Motor Speed | 18,000 RPM |
| Shaft Diameter | 6 mm with M3 threaded hole |
| Shaft Length | 30 mm |
| Gearbox Diameter | 37 mm |
| Motor Diameter | 28.5 mm |
| Motor Length (w/o shaft) | 63 mm |
| No-load Current | 600 mA |
| Load Current (Max) | 4.5 A |
| Torque (Holding) | Up to 9 kg-cm |
| Weight | 180 g |
Package Includes:
-
1 x 300 RPM Johnson Motor (Grade A)
