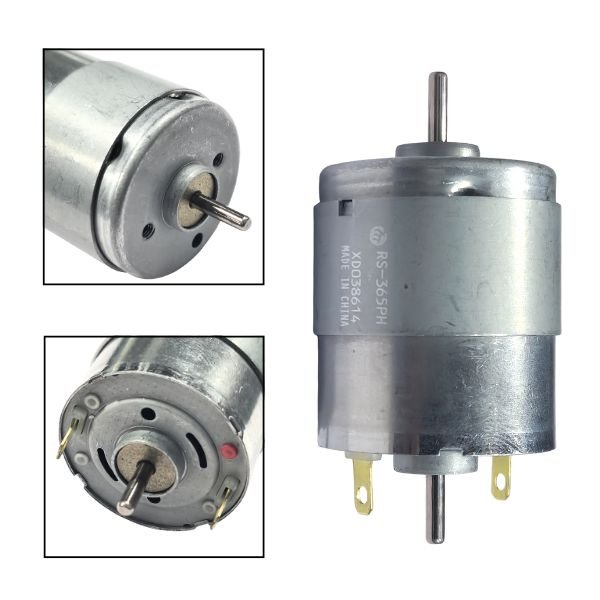

RS-365-PH DC Motor Dual Shaft

• Model – RS 365-PH – Dual Shaft
• RPM : 1900 – 8500 rpm (Max); Output Power- 0.7W – 35 Watt Approx
• Current : 1 Amp (Max); Operating Voltage : 6V – 24V DC; Torque- 69 – 411 (g-cm)
• Output Shaft Diameter – 2.3mm; Length – 11mm
• Motor Weight- 62 Grams; Outside Diameter- 29mm; Length – 32mm
• Voltage:6V No-load current:50mA; Stall current:0.38A; No-load speed:1900RPM
• Voltage:12V; No-load current:60mA; Stall current:0.75A; No-load speed:3950RPM
• Voltage:18V; No-load current:60mA; Stall current:1.00A; No-load speed:6100RPM
• Voltage:24V; No-load current:60mA; Stall current:1.40A; No-load speed:8500RPM
• Package Include 2 x RS365PH DC Motor

Package Includes:

1 x RS-365-PH DC Motor
