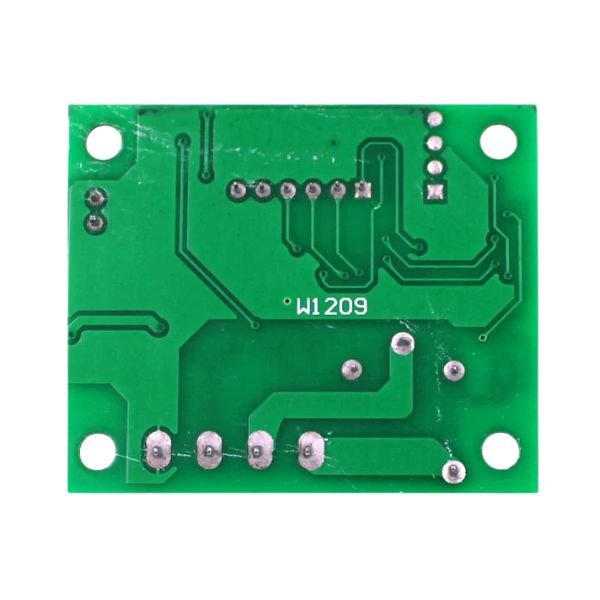

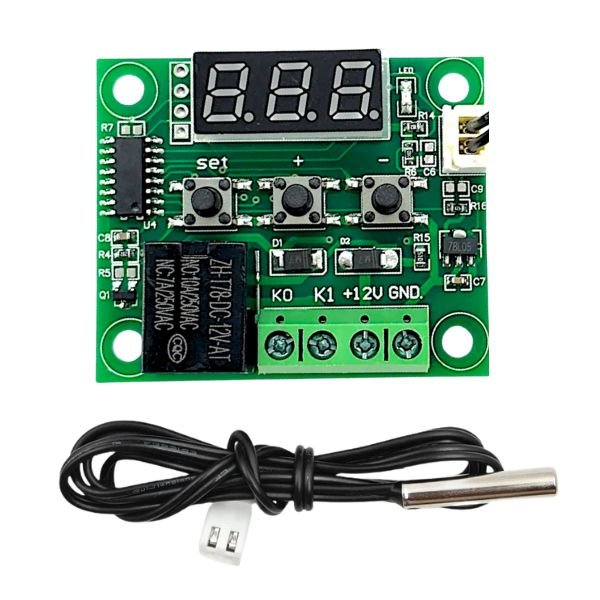

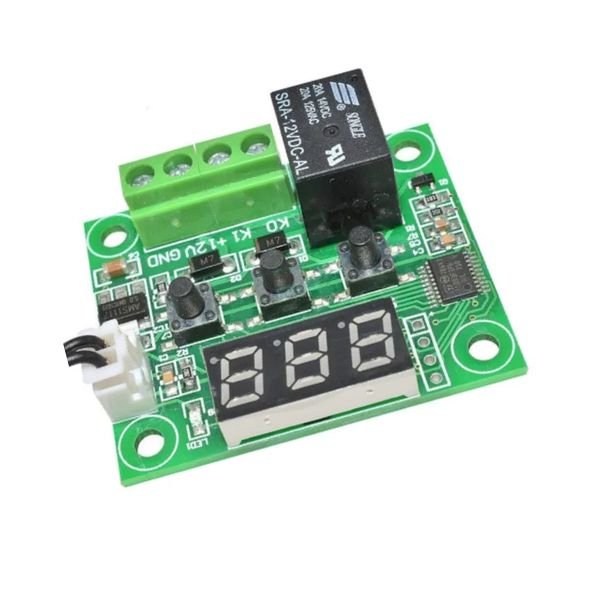

The W1209 Digital Temperature Controller Sensor is a small, standalone device that allows you to control the temperature of a system or process using a digital interface. It typically includes a temperature sensor, a control algorithm, and an output mechanism to control the temperature. It may also have a display for showing the current temperature, setpoint, and other information. The W1209 Digital Temperature Controller Sensor-Thermostat Module get it now on StemVolt is ideal for educational use, diy experiments, and compact temperature control projects where accuracy and ease of use are important.
Related Products:
-
Digital thermostat controller module
-
Waterproof temperature sensor probe
Applications:
-
Temperature control in incubators
-
Aquarium heater management
-
DIY thermostat projects
-
Cooling fan automation
Specifications:
| Parameter | Details |
|---|---|
| Display type | LED digital display |
| Supply Voltage | DC 12V |
| Temperature range | -50°C to 110°C |
| Control accuracy | ±0.1°C |
| Static Current | Â <=35mA |
| Current | <=65mA |
| Humidity | 20 – 85% |
| Temperature Control Range | -50 ~ 110 Celsius |
| Measuring Inputs | NTC10K |
| Cable Length | 0.5 Meter |
Package Includes:
1 × W1209 Digital Temperature Controller Sensor | Thermostat Module
