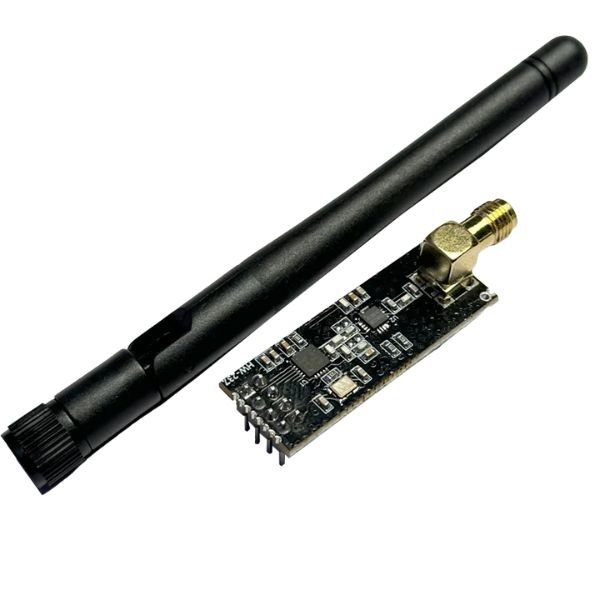

2.4GHz NRF24L01
The NRF24L01 module is the latest in RF modules. This module uses the 2.4GHz transceiver from Nordic Semiconductor, the NRF24L01+. This transceiver IC operates in the 2.4GHz band and has many new features! Take all the coolness of the 2.4GHz NRF24L01+PA+LNA SMA Wireless Transceiver Antenna and add some extra pipelines, buffers, and an auto-retransmit feature – very nice!
This board features a reverse polarized SMA connector for maximum RF range. There is a PA and LNA circuit on board, with the external antenna it can reach long distance than the one without these parts.
This module comes with a 2.4G antenna (2DB), with a 250Kbps transmission rate on open-air it can reach the 800-1K meters communication distance.
This wireless Transceiver module is an easy and suitable module if you want to set up your wireless communication system at a low cost!! It can achieve a good balance between wireless transition performance and cost!
You can easily add it with your own MCU/ARM/PIC/AVR/STM32 system! What’s more, this nRF24L01+ module is designed with the Power amplifier and SMA antenna This allowed you to use the wireless communication up to 1000 meters! (No barrier)
Technical Details
- Item Type: Wireless Transceiver Antenna
- Model No.: NRF24L01+PA+LNA
- Frequency (MHz): 2400
- Rated Voltage (VDC): 3 to 3.5
- Working Current (mA): 115
- Maximum output power (dBm): +20
- Mode current (μA): 4.2
- Operating Range (Km): 1
- Antenna Gain (peak) (dBi): 2
- Receiver Sensitivity:
- -92dBm in 2Mbps mode
- -95dBm in 1Mbps mode
- -104dBm in 250kbps mode
- PA growth (dB): 20
- LAN growth (dB): 10
- LAN noise figure (dB): 2.6
- Operating Temperature (°C): -20 ~ +70
- Length (mm): 49
- Width (mm): 16
- Height (mm): 13
- Weight (g): 15
- Length of Antenna (cm): 11
Features
- Uses 2.4GHz global open ISM band, with license-free operation
- Transmit power is greater than +20 dBm
- Supports six-channel data reception
- 2Mbit/s speed enables high-quality VoIP
- Multi-frequency points: 125 frequency points for multi-point communications and frequency hopping
- Low cost: integrated with high-speed signal processing parts associated with RF protocol, such as automatic re-send of lost packets and generation of acknowledge signal
- SPI interface facilitates communication with MCU I/O port
- Facilitates development for customers, without the need for developing the RF part
- Software programming is fully compatible with NRF24L01 modules
Applications :
- Long-Range Wireless Communication: Suitable for projects requiring communication over long distances (up to 1 km or more in open areas with proper antenna placement).
- Remote Control Systems: Used for wireless remote control applications like drones, cars, and other vehicles that require extended range.
- IoT Networks: Ideal for IoT systems where long-range, low-power communication is required between nodes (sensors, actuators, gateways).
- Wireless Data Transmission: Wireless sensor networks for remote data collection in fields like agriculture, environmental monitoring, or industrial automation.
- Home Automation: Can be used in smart home systems to connect various devices over a larger area, such as lights, thermostats, and security systems.
Package Includes
- 1 x 2.4GHz NRF24L01 + PA + LNA SMA Wireless Transceiver module with Antenna
