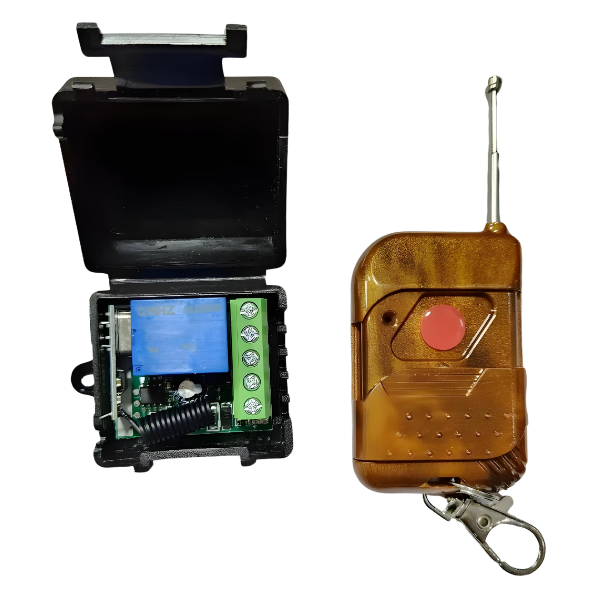

433MHz 12V 1 Channel Relay Module Wireless Remote Control Switch

Introducing the 433MHz 12V 1 Channel Relay Module Wireless Remote Control Switch, powered by an intelligent microprocessor for seamless operation. This versatile device finds applications in garage door control, lighting management, curtain operation, and door control systems, among others.

Effortlessly installable and compact in size, it offers both convenience and reliability. Trust in its safety features and enjoy peace of mind as you effortlessly manage various systems with ease.

Features

1. Learning Process: Press and hold the learn button for 2 to 3 seconds until the indicator light turns off, indicating it has entered the learning state. Release the learn button. Press any key on the remote control; the indicator light will flash 5 times to confirm successful learning. Note: The controller can learn up to 16 different encodings, including fixed code/learning code. Any additional learning will clear the previous remote control settings.
2. Removal Method: To clear the learned settings, continue holding down the learning button for approximately 8 seconds. The indicator light will gradually extend from being lit to extinguished, signifying successful removal.
3. Work Mode Switching: Connect a 12V DC output for single remote control learning switch. Connect the 12V DC power supply, ensuring the output connects to the 12V positive public end. Connect the positive end of the light bulb to the output side. Ensure the bulb’s cathode is connected to the power source’s cathode. This design enables simple control of the light bulb circuit.

Package Includes

• 1 x 433MHz 12V 1 Channel Relay Module Wireless Remote Control Switch without Battery
