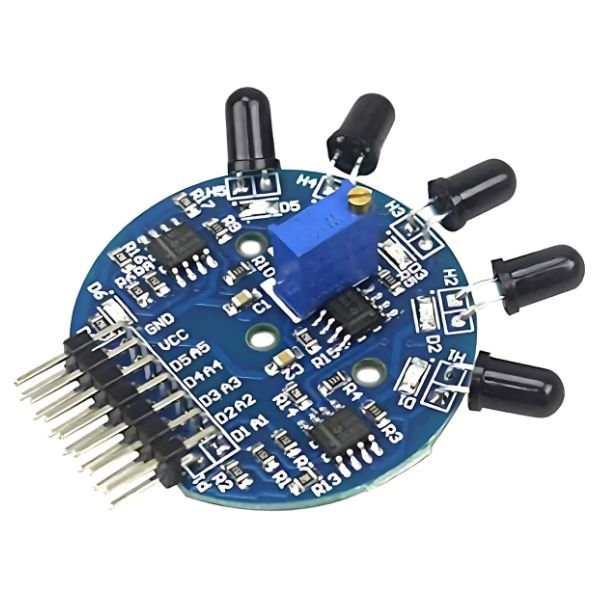

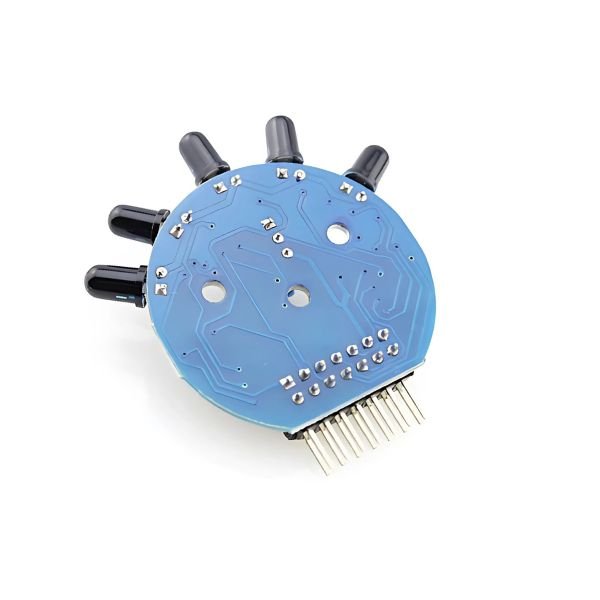

5-Channel Flame Sensor Module

5-Channel Flame Sensor Module is a 5 station fire sensor module used to discover flame in bigger place ( >120 degree). If you require a robot that ought to detect any fire round, then this module will be quite helpful for you. It finds that the flame with 5 fire detectors that are organized with 30 levels.

This module outputs analog signal, that might be precisely, as well as digital sign which would be simpler to use, you can fix the electronic output signal sensitivity from the on-board potentiometer. The 5 LED signs are useful in your debugging, the high-precision resistors makes this detector more exact than other fire detectors.

This module is sensitive to the flame and radiation. It also can detect ordinary light source in the range of a wavelength 760nm-1100 nm. lighter flame test distance of 80cm, for the greater the flame, the farther the distance test.

Features :

• Analog and digital outputs
• On-board potentiometer and indicators
• 1% resistors to make this module more reliable and precise
• Can output the analog signal can be accurately measured, for high precision applications
• Adjustable detection range digital output, analog output sensitivity adjustable design flexibility

Specifications:

Applications:

• Robotics (fire sensing and fire fighting)
• Fire alarm

Package Includes :

• 1 x 5-Channel Flame Sensor Module.
