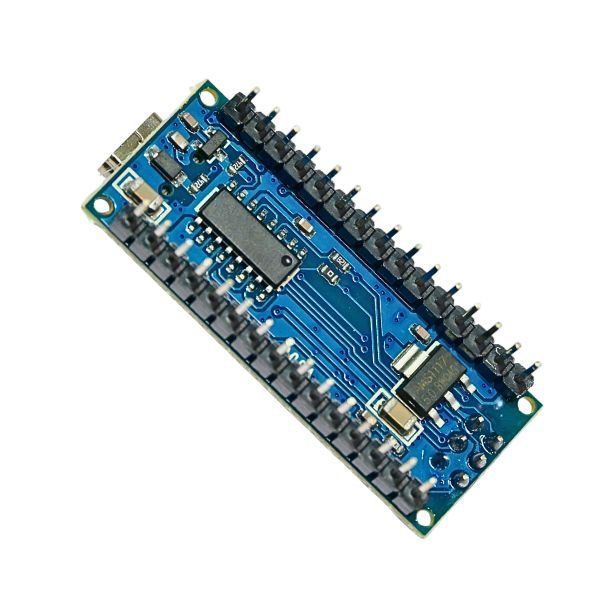

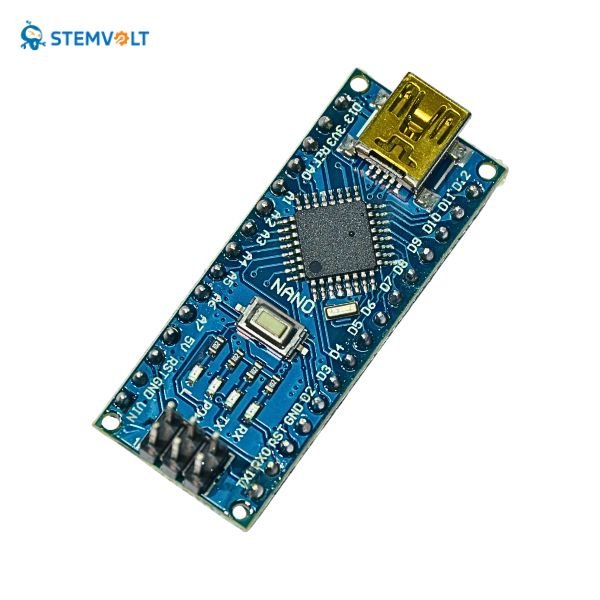

Arduino Nano R3 Compatible Board with CH340 chip SOLDERED

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x) or ATmega168 (Arduino Nano 2.x). It has more or less the same functionality as the Arduino Duemilanove but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.

Key Features:

• Based on the Arduino platform, compatible with Arduino Uno but with a smaller footprint.
• Equipped with a CH340 USB-Serial Chip for reliability.
• Powered via mini-USB connection, 6-20V unregulated external power supply, or 5V regulated external power supply.
• Features 6 PWM I/O and 22 digital I/O pins.
• Provides 8 analog inputs.
• Operates at a clock speed of 16MHz with 32KB flash memory.
• Supports node-to-node communication on LoRa with Arduino Nano and ESP32.
• Requires downloading CH341S64.SYS driver and using old bootloader settings in Arduino IDE.
• Compatible with Nano 328P Expansion Adapter Breakout Board IO Shield for expanded access to pins.

• Specifications:

Package Includes:

• 1 x Arduino Nano Board compatible
