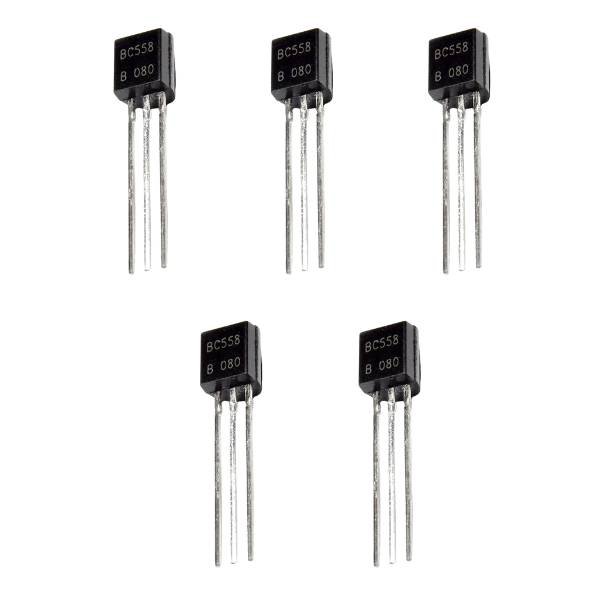

BC558 PNP Transistor (Pack of 5)

The BC558 PNP Transistor has a gain value of 110 to 800; which indicates the amplification capacity of the transistor. The peak current that could flow through the Collector pin is 200mA, this combined with the high gain value makes it an ideal choice for audio amplification applications.

Applications:

• Build simple audio circuits
• General purpose amplifier
• Driver Modules like Relay Driver, LED driver etc
• Amplifier modules like Audio amplifiers, signal Amplifier etc
• Darlington pair

Features:

• A Bi-Polar PNP Amplifier Transistor
• DC Current Gain (hFE) is 110 to 800
• Continuous Collector current (IC) is 100mA
• Peak Collector current (Ic) is 200mA
• Emitter Base Voltage (VBE) is 5V
• Base Current(IB) is 200mA peak
• Available in To-92 Package

Package Includes:

• 1 x BC558 PNP Transistor (Pack of 5)
