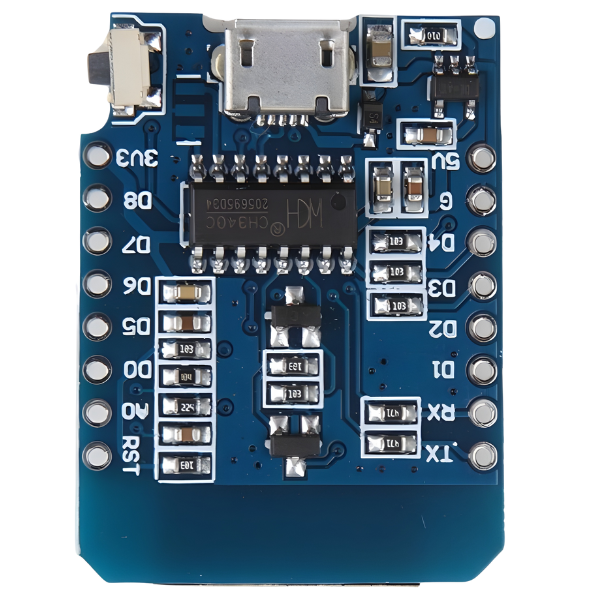

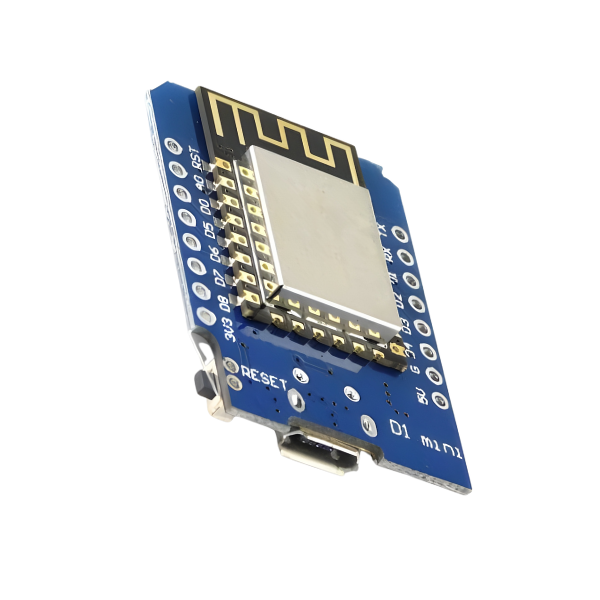

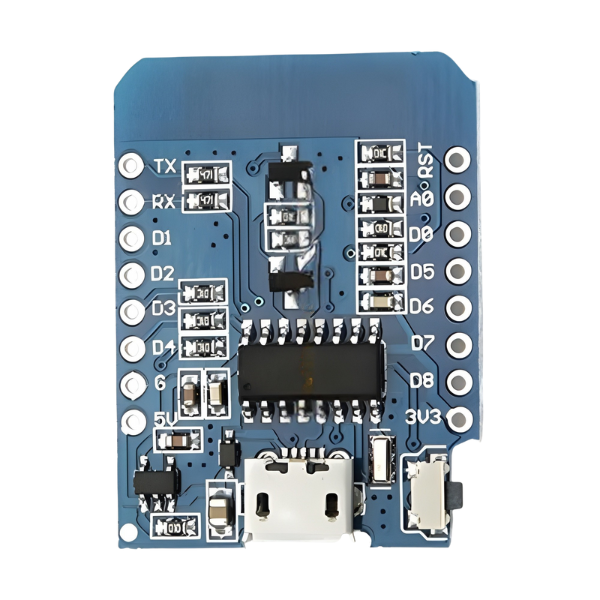

DI 8266 Board

The DI 8266 Board is a compact and versatile ESP8266-based Wi-Fi development board designed for IoT projects, automation, and smart device prototyping. It integrates the powerful 32-bit Tensilica LX106 microcontroller running at 80 MHz with built-in Wi-Fi 802.11 b/g/n support, enabling wireless connectivity and remote control. The board features multiple GPIO pins, ADC input, and standard communication interfaces such as SPI, I2C, and UART, making it ideal for both beginners and advanced developers working with smart sensors and IoT devices.

Features:

• Powered by ESP8266 Tensilica LX106 32-bit microcontroller @ 80 MHz

• Supports IEEE 802.11 b/g/n Wi-Fi standards for seamless connectivity

• 4 MB Flash memory with 64 KB SRAM for efficient programming and data storage

• 17 GPIO pins configurable for digital input/output, PWM, I2C, SPI, UART

• 10-bit ADC input for analog sensor interfacing

• USB or external power input supported (3.3V operating voltage)

• Supports Lua and Arduino IDE programming environments

• Low-power Wi-Fi modes including deep sleep for energy-efficient applications

• Compact form factor suitable for breadboard mounting and embedded projects

Specifications:

Package Includes:

• 1 x DI 8266 Board (ESP8266-based Wi-Fi development board)
