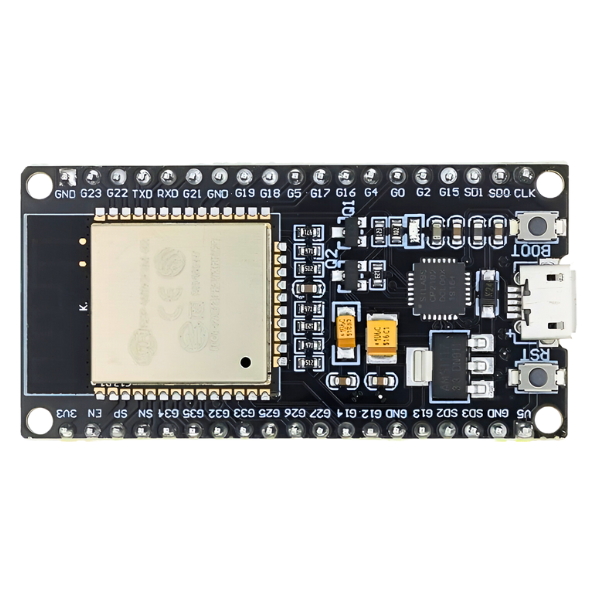

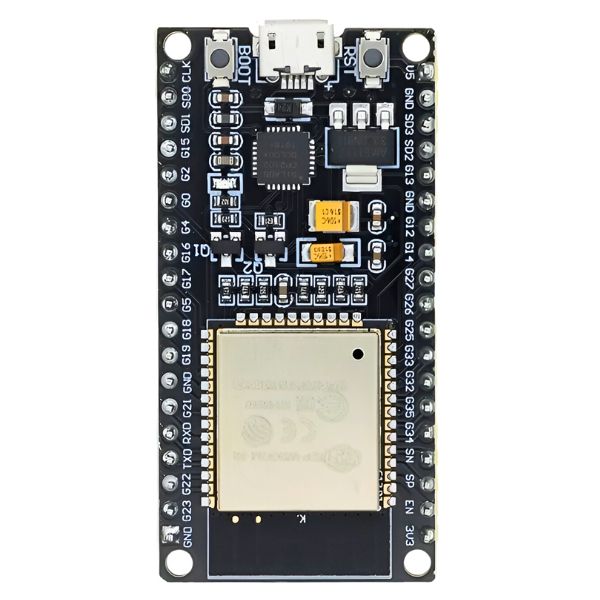

ESP-WROOM-32 WIFI Bluetooth Module (30PIN)

The ESP WROOM 32 MCU Module is shown. The ESP WROOM 32 is a powerful, all-purpose WiFi-BT-BLE MCU module that can handle a broad range of functions, including speech encoding, music streaming, and MP3 decoding, as well as low-power sensor networks.

The ESP32S chip, which is intended to be scalable and adaptable, lies at the heart of this module. The clock frequency of the two CPU cores, which can be adjusted from 80 MHz to 240 MHz, may each be separately controlled or powered.

The CPU can be turned off if the user prefers, and the low-power coprocessor can be used to continuously check the peripherals for changes or the crossing of thresholds. Capacitive touch sensors, Hall sensors, low-noise sensing amplifiers, an SD card interface, Ethernet, high-speed SDIO/SPI, UART, and I2C are just a few of the peripherals that are integrated within the ESP32S.

Features:-

• 520 KB integrated SRAM.
• Wi-Fi and Bluetooth hybrid.
• high degree of fusion.
• handling of extremely little power.
• Flash 4 MB.
• PCB antenna on the board
• 30pin

Package Includes:-

1 X ESP-WROOM-32 WIFI Bluetooth Development Board
