L293D 4 Channel DC Motor Driver

SKU: SVT-4001

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

95.00 (Included GST)

In Stock

In Stock

Add 999.00 to cart and get free shipping!
14 People watching this product now!
  • Pick up from the Stemvolt Store in Kota, Rajasthan

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address all over India

3-8 Days

79

Payment Methods:

Description

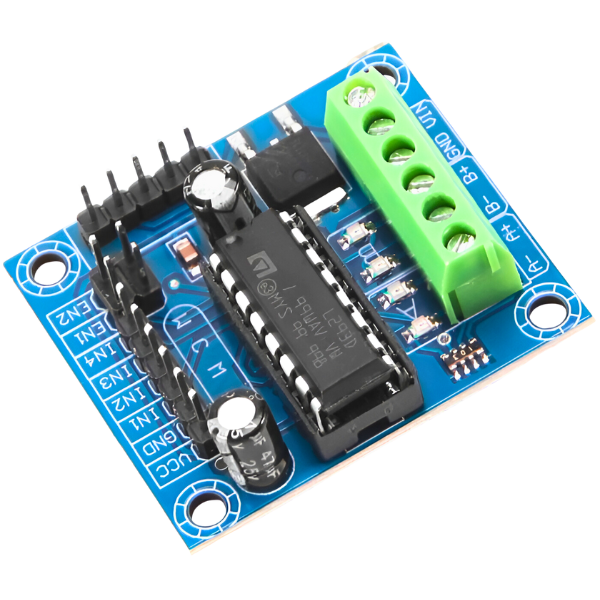

  • This is L293D 4 Channel DC Motor Driver
  • The Device is a monolithic integrated high voltage,high current four channel driver.
  • The input voltage of L293D motor shield is DC4.5-25V.
  • This features 600mA output current capability per channel.
  • Logical “0” input voltage up to 1.5 V(high noise immunity).
  • This allows you to control 2 DC motors in 2 directions at the same time.
  • Designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoides, DC and stepping motors) and switching power transistors.

Motor Drive Board L293D Module For Arduino UNO MEGA 2560 is a Device is a monolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoids, DC, and stepper motors) and switching power transistors.

To simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage, and internal clamp diodes are included. This device is suitable for use in switching applications at frequencies up to 5 kHz.

It is a medium-power motor driver perfect for driving DC Motors and Stepper Motors. It uses the popular L293 motor driver IC. It can drive 4 DC motors on and off, or drive 2 DC motors with directional and speed control. L293D DC Motor Driver Module is fully compatible with Arduino and Raspberry Pi cards. Allows you to control 2 DC motors in 2 directions at the same time. L293D DC Motor Driver has become easy to use by being turned into a module. You can integrate them into your circuits very quickly by making the necessary connections to the output and input pins.

Applications:
  • Can be used to control motors of DIY Robot
  • Can be used to control motor speed and direction

Also, read our blog What is Motor Driver detailing an overview of motor drivers, including the different types available and how they work.

Specifications:
ModelL293D
Input Voltage (VDC)4.5-25V
Output current (Per channel)600mA
Dimensions mm (LxWxH) 40 x 35 x 12
Weight (gm)11

Package Includes:

  • 1 x L293D 4 Channel DC Motor Driver
