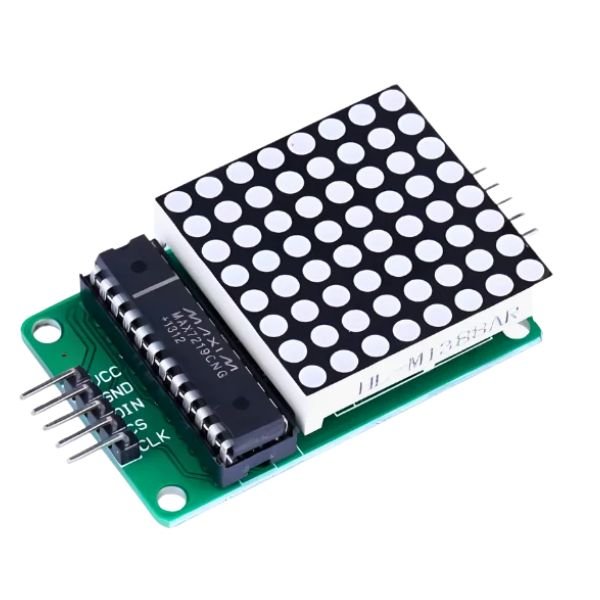

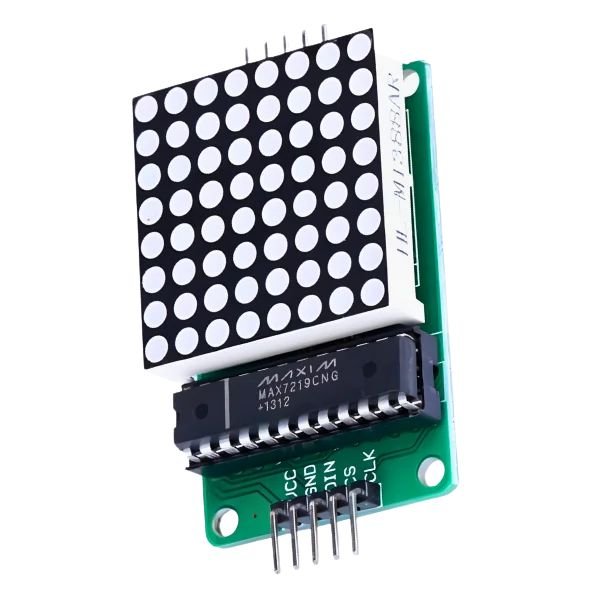

The MAX7219 8×8 LED Dot Matrix Display Module is a high-performance display unit ideal for visual output in Arduino and Raspberry Pi projects. Featuring the MAX7219 driver chip, this compact module simplifies LED control using only three communication pins. Its cascading support allows multiple modules to connect easily for larger displays. With low power consumption and bright red LEDs, it’s perfect for text, symbols, and real-time visual indicators.
Related Product:
-
MAX7219 4-in-1 Dot Matrix Display Module
-
MAX7219 LED Scrolling Text Display Board
Applications:
-
Scrolling text and digital signage projects
-
Arduino and Raspberry Pi visual output
-
Robotics and IoT status displays
-
Educational STEM learning kits
Specifications:
| Parameter | Details |
|---|---|
| Driver Chip | MAX7219 |
| Input Voltage | 5V DC |
| Operating Current | 320 mA |
| LED Color | Red |
| Display Type | 8×8 LED Matrix |
| LED Display Dimensions | 50 × 32 × 15 mm (L × W × H) |
| Communication Interface | Serial (SPI compatible) |
| Mounting Holes | M3 for easy installation |
| Weight | 25 g |
| Cascadable | Yes, supports multiple modules |
Features:
-
Bright red LEDs with clear and uniform light output
-
Compact PCB design with mounting holes for easy setup
-
Supports cascading multiple modules for extended displays
-
Low power and high-efficiency performance
Package Includes:
-
1 × MAX7219 8×8 LED Dot Matrix Display Module
