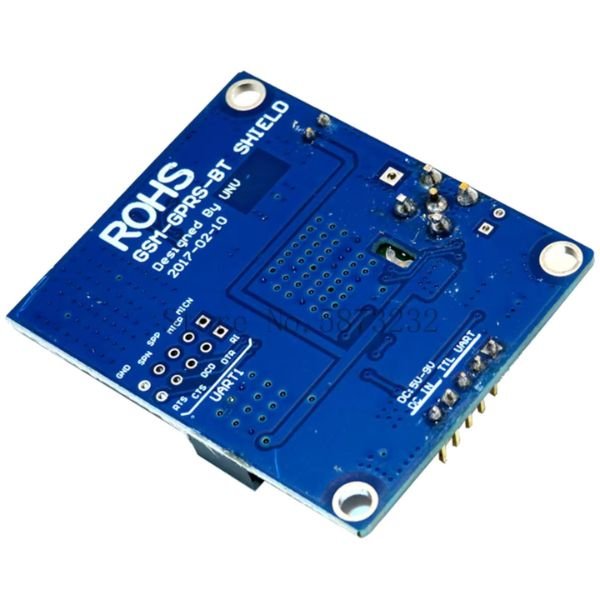

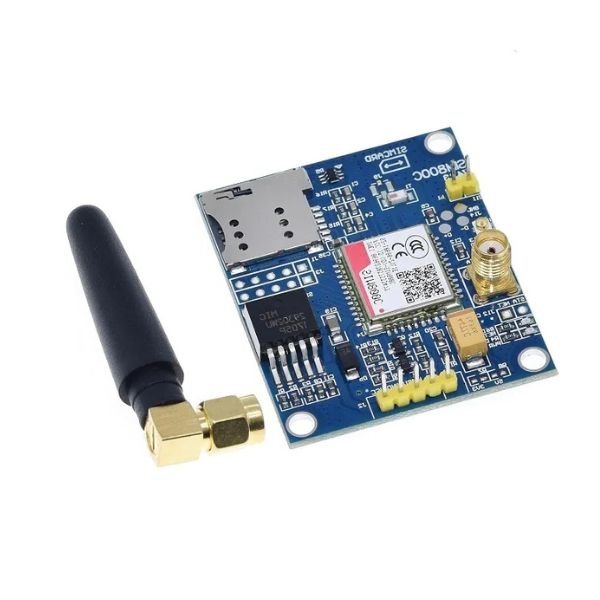

SIM800C Quadband GSM GPRS TTL Module with Antenna - Image 1

SIM800C Quadband GSM GPRS TTL Module with Antenna - Image 2

SIM800C Quadband GSM GPRS TTL Module with Antenna

Name: SIM800C Quadband GSM GPRS TTL Module with Antenna - stemvolt.in
SKU: SV-IOT-GP016
Price: 850.00 INR
Availability: InStock

SKU: SV-IOT-GP016

GSM/GPRS module with TTL interface, voice/SMS/data support, Bluetooth, and audio pins. Ideal for IoT and automation projects. Automatically connects to network on power-up.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹850.00 (Included GST)

In Stock

Add ₹999.00 to cart and get free shipping!

Add to compare

Add to wishlist

11 People watching this product now!

Pick up from the Stemvolt Store in Kota, Rajasthan

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address all over India

3-8 Days

₹79

Payment Methods:

Description

Compact and efficient GSM/GPRS module supporting 850/900/1800/1900 MHz bands. Enables voice calls, SMS, and data communication via TTL serial interface. Compatible with Arduino, ESP32, and similar controllers.
Features include automatic network connection, low power usage, Bluetooth 3.0 (SPP & audio), TTS and DTMF functions, and audio test pins. Offers antenna flexibility with IPEX, SMA, and spring options.
Power input supported via DC 5V–9V or 3.7V lithium battery.

Features:

GSM/GPRS 850/900/1800/1900 MHz
Voice, SMS, and GPRS support
TTL serial interface with level shifting
Auto power-on network connection
Bluetooth 3.0, TTS & DTMF
Audio interface: mic and headphone pins
Multiple antenna support (IPEX/SMA/spring)
Lithium battery or DC input support

Specifications:

Parameter	Description
Network Band	GSM/GPRS 850/900/1800/1900 MHz
Interface	TTL Serial, Audio, Antenna, Power
Power Input	5V–9V DC or 3.7V lithium battery
Bluetooth	v3.0 (SPP & Audio Services)
Features	TTS, DTMF, Audio In/Out
