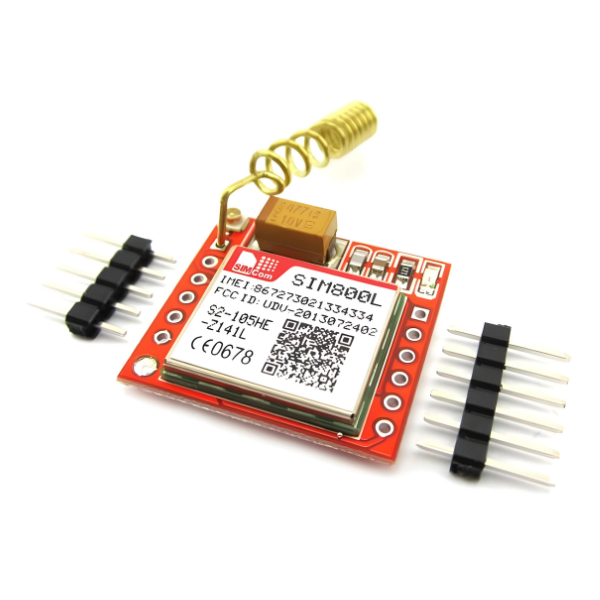

SIM800L GPRS GSM Module Core Board Quad-band TTL Serial Port with the antenna

SIM800L GSM/GPRS module is a miniature GSM modem, which can be integrated into a great number of IoT projects. You can use this module to accomplish almost anything a normal cell phone can; SMS text messages, make or receive phone calls, connecting to the internet through GPRS, TCP/IP, and more! To top it off, the module supports quad-band GSM/GPRS network, meaning it works pretty much anywhere in the world. An antenna is made of wire – very useful in narrow places.

Specifications:

Features :

• Micro SIM Card
• Supports A-GPS
• Supports Real-Time Clock
• Quad-band 850/900/1800/1900MHz
• GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load)
• GPRS mobile station class B
• Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
• Supply voltage range 3.4V ~ 4.4V
• Supports 3.0V to 5.0V logic level
• Low power consumption, 1mA in sleep mode

Package Includes :

1 x SIM800L GPRS GSM Module.

1 x Antenna.
