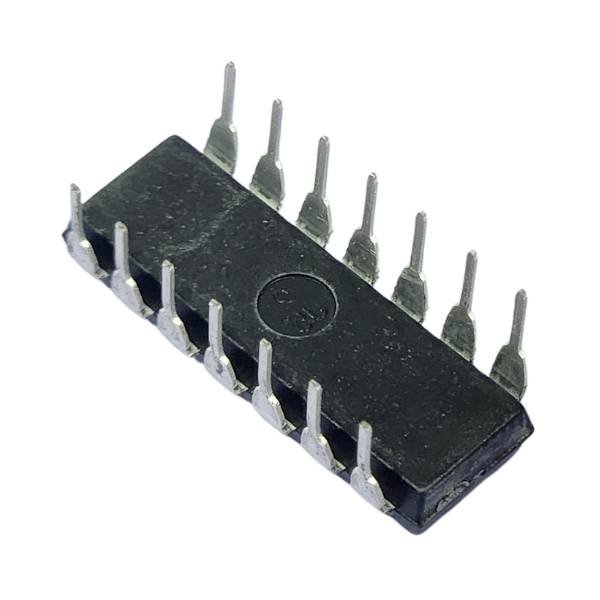

The SN74HC86N Quad 2-Input XOR Gate IC DIP-14 (7486) is a wide operating range of VCC from 2 V to 6 V. Maximum current consumption is 20 uA through Icc and 1 uA per input pin. And the propagation delay is 10 ns. They can drive 10 LS-TTL loads at a time. Which means that the output pin of 8 pin XOR gate can drive 10 TTL based Low-Power Schottky( LS ) input pins. The SN74HC86N Quad 2-Input XOR Gate IC is ideal for learning and circuit testing. Avaliable on StemVolt, it supports students, DIY makers, and electronics learners.
Related Product:
- SN74HC08N Quad AND Gate IC
- SN74HC32N Quad OR Gate IC
Specifications:
| Parameter | Details |
|---|---|
| IC Type | Quad 2-input XOR gate |
| Package Type | DIP-14 |
| Logic Family | HC CMOS |
| Model Number | SN74HC86N |
| Operating Voltage | 2V to 6V |
| Number of Gates | 4 |
| Input Current | 1 uA |
| Powering Current | 20 uA |
Package Includes:
1 × SN74HC86N Quad 2-Input XOR Gate IC – DIP-14 (7486)
