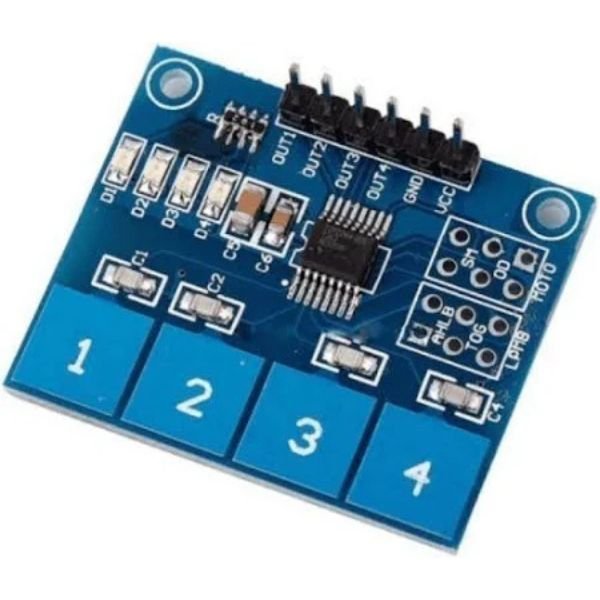

TTP224 4 Channel Capacitive Touch Sensor Module

TTP224 4-way 4 channel Capacitive Touch Switch Module

This is a 4-switch digital touch sensor with capacitive sense technology, the TTP 224 IC offers a capacitive sense input feed designed for touchpad control, followed by a 4- 4-finger-sized touchpad. The board has a jumper’s arrangement to change the keypress output mode in Timed or Toggle, Active High or Active Low. Separate jumper adjustments are provided for changing the response time of the pressed key: 60mS fast mode or 160mS in Low power. The output side of the board has 6-pin headers, with 4 pins to be connected with the digital I/O of any microcontroller board (Arduino, ARM STM32). 4 status LED SMD types are provided to check the status of each pressed key. TTP 224 4-Channel Digital Touch Sensor is compatible with all Arduino’s boards. The board finds applications in HMI(Human-machine Interface), and mechanical Button key replacement.

Note : HW-138 on board working remains the same.

Features
