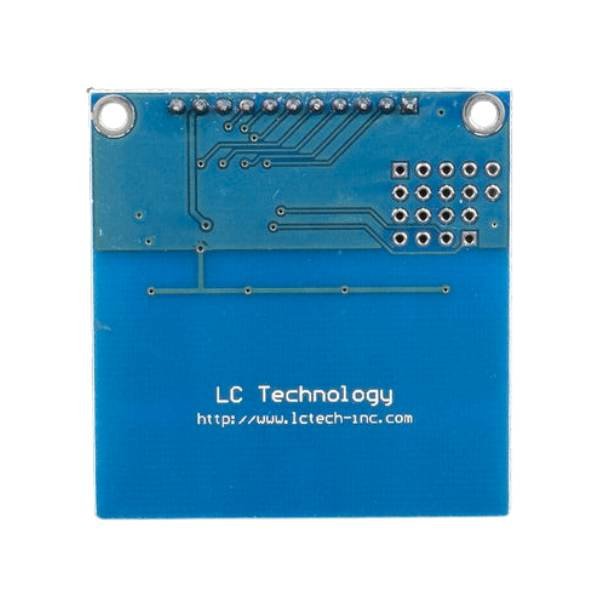

TTP226 8-way Capacitive Touch Switch Module
The TTP226 is a touchpad detector IC that offers 8 touch keys. The touch detection IC is designed to replace the traditional direct button key with a diverse pad size. Capacitive touch allows electronics to sense when your finger is within a few millimetres of a surface to simulate a button “press” just like how the pushbutton works. Capacitive sensing may be used where low to no force human touch sensing is desirable.
Note: HW-137 on board working remains the same.
Technical Details
- Item Type: Electronic Switch
- Model Type: Touch Switch
- Operating Voltage (VDC): 2.4 to 5.5
- Sink Current: 8mA
- Current (mA): 4mA Output Pin Pull-up
- Response Time (μS): 220ms (Low Power Mode), 60ms (High Power Mode)
- Length (mm): 46
- Width (mm): 47
- Height (mm): 11
- Weight (g): 7
Features
- On-board TTP226 capacitive touch induction IC
- On-board 8-way level indicator
- Adjustable output mode
- Key output mode
- Longest time and fast/low power output
Applications :
- Touch-sensitive keypads: Ideal for creating custom touch-based user interfaces in consumer electronics, such as home appliances, security systems, or toys.
- Smart home automation: Can be used in smart lighting systems, controlling lights or fans via touch without the need for mechanical switches.
- Remote controls: Provides a touch-sensitive alternative to traditional buttons for TV remotes or other devices.
- Touch-based security systems: Used in access control systems where touch-sensitive panels are part of unlocking or activating mechanisms.
Package Includes
- 1 x TTP226 8-way Capacitive Touch Switch Module
