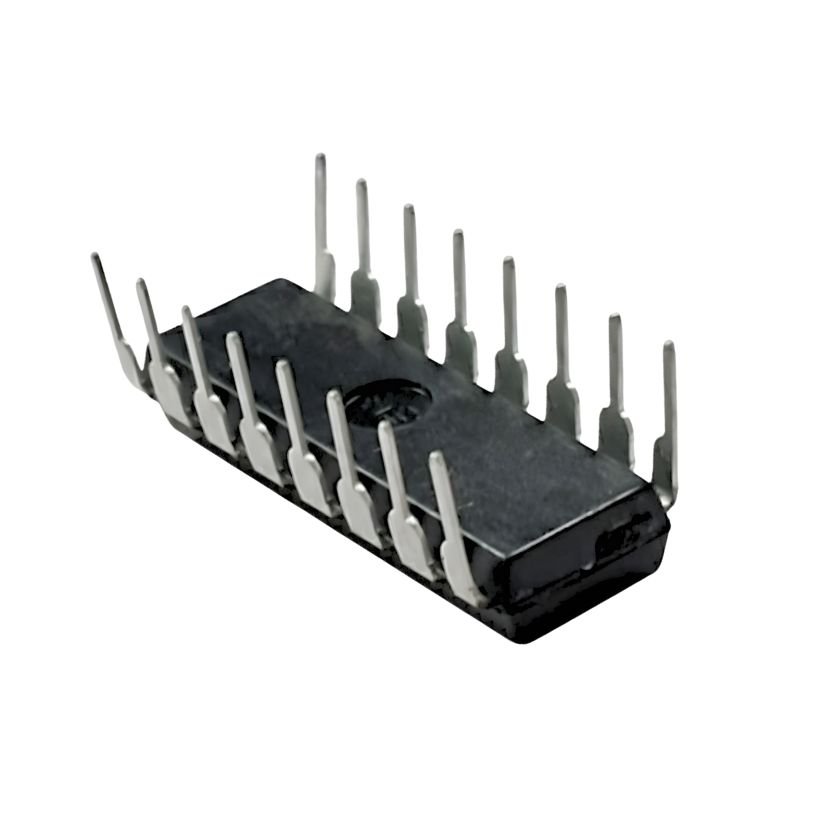

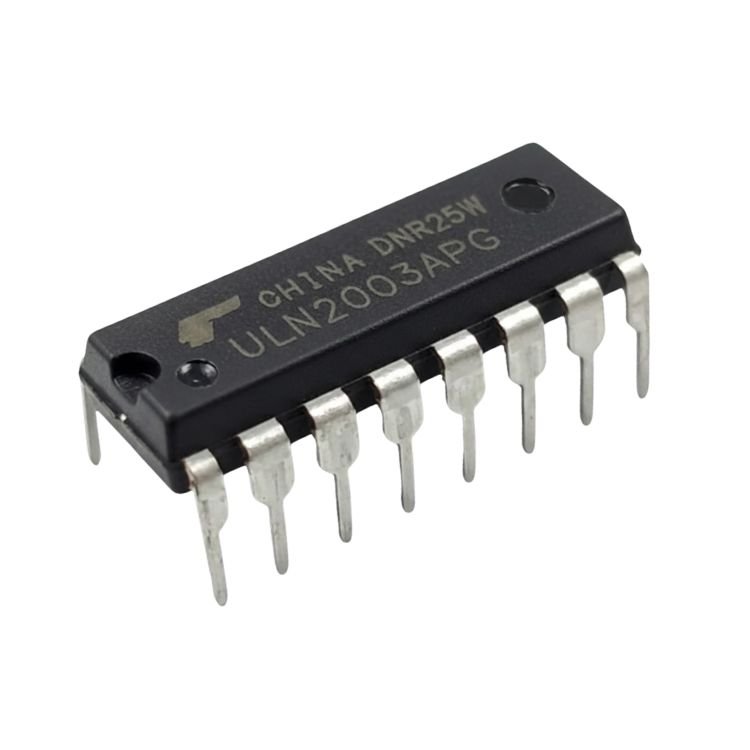

The ULN2003A 7-Channel Darlington Transistor Array IC – DIP-16 is designed to drive high-current loads using low-power logic signals. It helps control relays, motors, and lamps safely from microcontrollers. Easy to connect and dependable, this IC supports smooth switching. The ULN2003A 7-Channel Darlington Transistor Array IC – DIP-16 by StemVolt is suitable for educational use, diy projects, and basic automation applications.
Related Products:
-
ULN2803A 8-channel Darlington array IC
-
L293D motor driver IC
Specifications:
| Parameter | Details |
|---|---|
| IC Type | Darlington transistor array |
| Channels | 7 channels |
| Package Type | DIP-16 |
| Maximum Output Current | 500 mA per channel |
| Input Voltage | TTL and CMOS compatible |
| Voltage Output | 50V |
| Protection | Integral clamp diodes for inductive loads |
Features:
-
Seven high-current Darlington pairs
-
Built-in flyback diodes for protection
-
TTL and CMOS logic compatible inputs
-
DIP-16 package for easy soldering
Package Includes:
1 × ULN2003A 7-Channel Darlington Transistor Array IC – DIP-16
