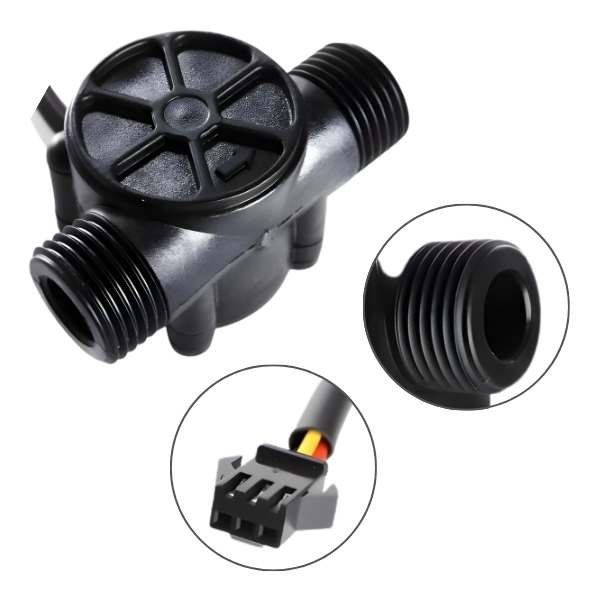

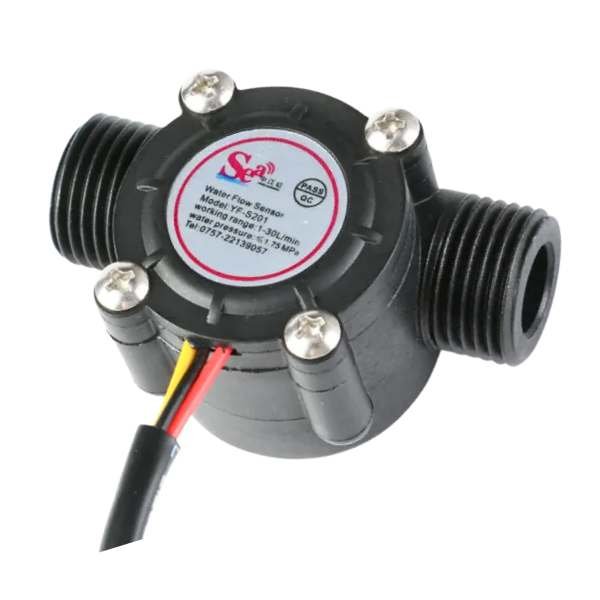

The Water Flow Measurement Sensor 1–30 LPM is made up of a plastic valve through which water can pass. A water rotor and a hall effect sensor are used to sense and measure the flow of water. When water flows through the valve, it causes the rotor to rotate. The motor’s speed can be changed as a result of this. The hall effect sensor calculates this change and outputs it as a pulse signal. The rate of flow of water can thus be measured. The Water Flow Measurement Sensor 1–30 LPM by StemVolt is suitable for educational use, diy experiments, and basic water monitoring applications.
Related Products:
-
Water flow sensor module
-
Arduino water flow meter
Applications:
-
Water flow monitoring in pipelines
-
Arduino and Raspberry Pi projects
-
School and college electronics experiments
-
Diy water management systems
Specifications:
| Parameter | Details |
|---|---|
| Model | Water Flow Sensor |
| Max Water Flow(L/min) | 1 to 30 |
| Working water pressure(MPa) | ≤1.75 |
| Operating humidity | 35% – 80% RH |
| Accuracy | ±10% |
| Pulse | 450 per liter |
| Output fall time (µsec) | 0.18 |
Package Includes:
1 × Water Flow Measurement Sensor 1–30 LPM
