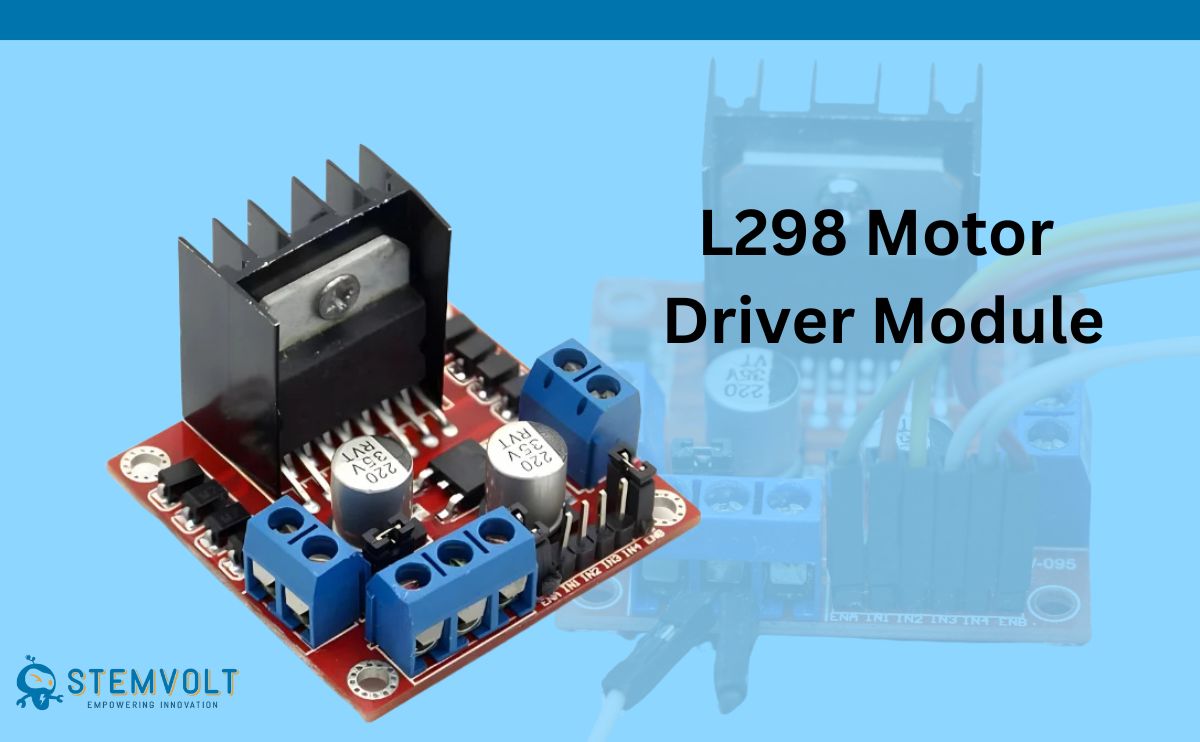

L298 Motor Driver Module
If you are interested in robotics or electronics projects, motor control is a crucial aspect. The L298 Motor Driver Module is a dual H-Bridge motor driver that allows you to control two DC motors or one stepper motor. This module is especially useful for robotics, automation, and DIY projects.
Features of L298 Motor Driver Module
Dual H-Bridge Driver: Can control two DC motors simultaneously.
Voltage Support: Supports motor voltage from 5V to 35V.
Current Capacity: Provides up to 2A per channel.
Speed Control: Uses PWM (Pulse Width Modulation) to control speed.
Built-in Heat Sink: Prevents overheating.
5V Regulator: Can be used to power external circuits (optional).
Pin Configuration and Functions
How the L298 Motor Driver Works
With the L298 module, you can rotate the motor in either direction, control its speed, and stop it.
Controlling Motor Direction:
To rotate the motor forward: IN1 = HIGH, IN2 = LOW
To rotate the motor backward: IN1 = LOW, IN2 = HIGH
To stop the motor: IN1 = LOW, IN2 = LOW
To control speed: Apply a PWM signal to ENA.
Where is the L298 Motor Driver Used?
Robotics projects (robotic cars, autonomous vehicles, drones, etc.)
Conveyor belt systems
CNC machines for motor control
Smart home automation projects
Industrial automation systems
A Simple Arduino Connection Example
To connect the L298 motor driver with an Arduino UNO:
- Connect VCC to a 12V battery or power supply.
- Connect GND to the Arduino’s GND.
- Connect IN1, IN2, IN3, IN4 to Arduino digital pins.
- Connect ENA, ENB to PWM-supported pins.
- Upload the Arduino code and control the motor.
Conclusion
The L298 Motor Driver Module is an excellent and easy-to-use solution for motor control. It is particularly useful for students, makers, and engineers who want to integrate motors into their projects. If you are looking for an affordable and reliable motor driver, L298 is a great choice.
Are you using this module in your project? Share your experience with us!
