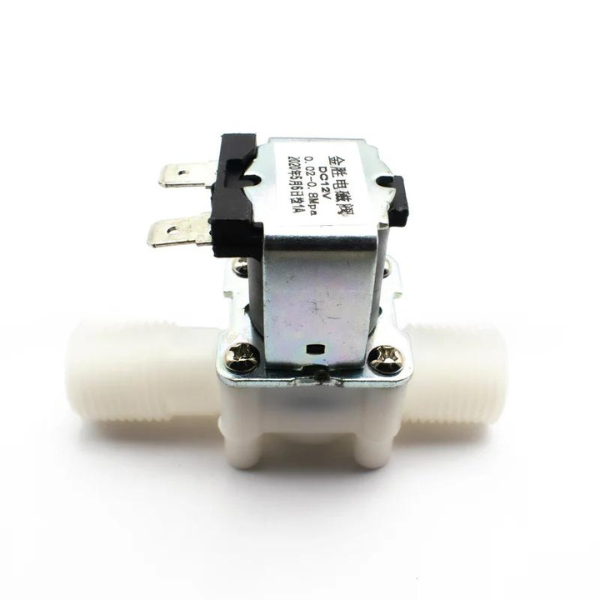

12V Solenoid Water Air Valve Switch (Normally Closed) – 1/2” controls the flow of fluid (liquid or air) and acts as a valve between high-pressure fluid! This liquid valve would make a great addition to your robotic gardening project. There are two ½” (Nominal NPT) outlets. Normally, the valve is closed. When a 12V DC supply is applied to the two terminals, the valve opens and water can push through. The flow rate is ≥1.8L/min when the water pressure is 0.02MPa; the flow rate is ≥20L/min when the water pressure is 0.8MPa.
The valve works with the solenoid coil which operates electronically with DC 12 volt supply. As it is a normally closed assembly, it opens the flow of fluids as soon as it is powered ON and stops/blocks the flow when the supply voltage removed.
SPECIFICATIONS
| Material | Plastic |
| Rated operating Voltage | 12V DC |
| Operating Current | 600mA |
| Operation Mode | Normally Closed |
| Power Consumption | 8W |
| Pressure | 0.02-0.8 MPa |
| Inlet and Outlet Diameter | 1/2 inch |
| Actuating Life | ≥50 Million Cycles |
Features:
- Compact and convenient.
- Easily installed and serviced
- Precise and reliable.
- The installation direction can be arbitrary Angle
- Pressure-regulating valve (steady flow valve) function similar to the water flow switch
- Not only can it provide a steady flow, but it also prevents the dry burning.
- Suitable for fluids like water, oil, air.
Package Includes:
1 x 12V Solenoid Water Air Valve Switch (Normally Closed) – 1/2”
