1203B PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
₹90.00 (Included GST)
In Stock
In Stock
20
People watching this product now!
Payment Methods:
Description

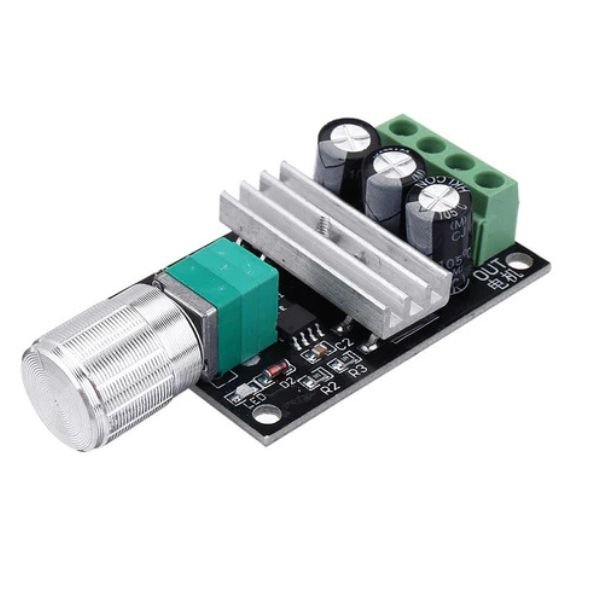

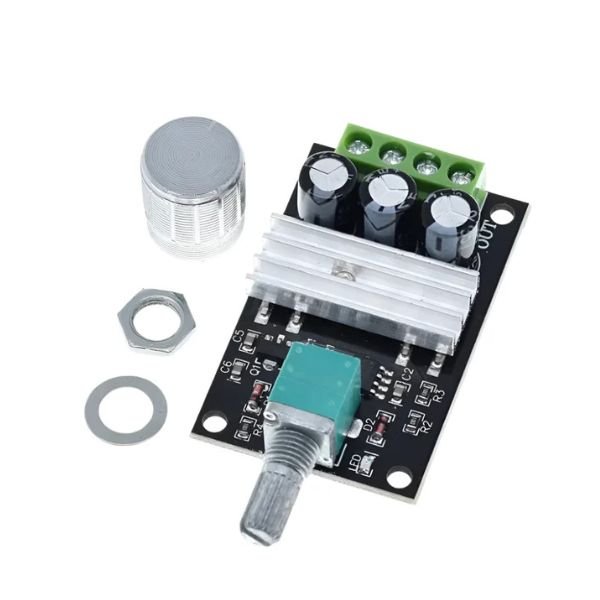

1203B PWM DC 6V 12V 24V 28V 3A DC Motor Speed Regulator
This is a simple and easy-to-use DC brushed motor speed controller with an elegant appearance and stable performance. The speed controller is made with a high-quality circuit board which ensures a longer service life. This motor speed controller would change the direction of rotation which accomplishes reversing the motor’s direction.
Convenient to use, simply rotate the knob to change the output so as to change the revolving speed of the DC motor. Designed with convenient screw terminals for quick wire connection.
Note:Â This is NOT a power module, the motor must be connected to the motor to control speed, and the multimeter output will not change without a motor. This governor is used for DC brushed motor.
Technical Details
- Input Voltage: DC 6V, 12V, 24V
- Maximum Current: 3A
- Size: 50 × 32 × 15mm (2 × 1.3 × 0.6 inches)
- Weight: Approx. 21g
- Speed Range: 0 – 100%
Features
- With this, the speed of a motor is fully adjustable
- Supports DC 6V, 12V, 24V, and 28V
Applications :
- DC motor speed control:Â Adjust motor speed with precision
- Fan speed adjustment:Â Regulate cooling and ventilation fans
- LED dimming:Â Control brightness using PWM
- Electric toy motor control:Â Adjust toy motor speeds
Package Includes:
- 1 x 1203B PWM DC 6V 12V 24V 28V 3A DC Motor Speed Regulator
