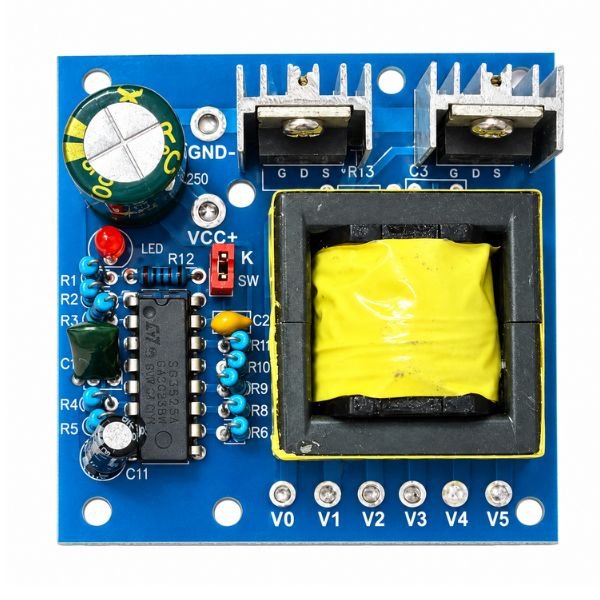

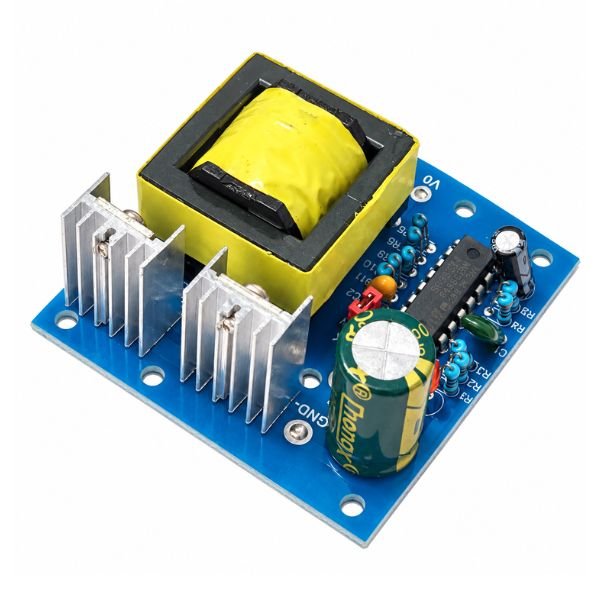

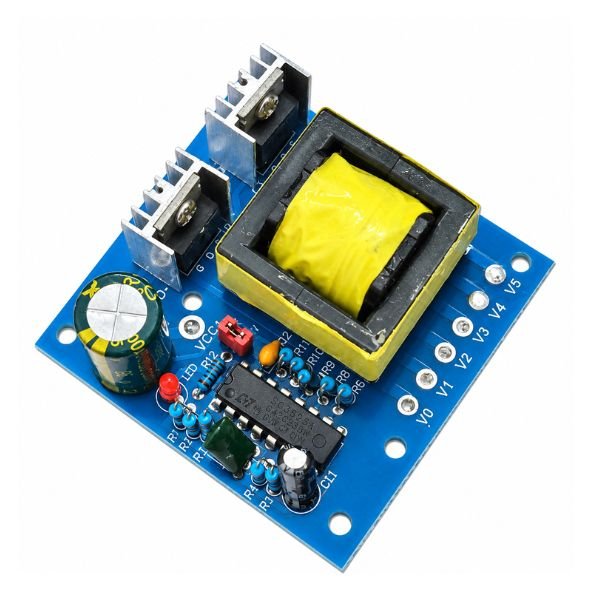

150W 12V DC to 220V AC Inverter Boost Module Board

The 150W 12V DC to 220V AC Inverter Boost Module Board uses a high-frequency switching topology at 20 kHz to boost the 12V input through a transformer stage, then rectify and switch it into an AC output waveform. Output voltage is selectable across four levels — 110V, 172V, 200V, and 220V — covering both Indian 220V mains standard and international 110V standard in one module. A DC-to-AC inverter converts a low-voltage DC source — typically a 12V battery — into mains-level alternating current that AC-powered loads require.

The 150w dc to ac inverter module delivers up to 150W continuous output power, which covers light loads including LED lighting, small fan motors, and low-wattage electronic devices operating from a 12V battery source. Quiescent current at 0.05A means the module draws only 50mA from the 12V input when no load is connected — extending battery runtime in standby applications. The 20 kHz switching frequency eliminates the 50Hz transformer hum present in older low-frequency inverter designs. The dc to ac inverter boost module fits inside custom enclosures as an embedded inverter stage rather than a standalone wall-mount unit.

This module produces AC voltage at up to 220V on the output terminals. Never touch output terminals or connected wiring while the module is powered. Always enclose the output terminals in a fully insulated housing before use. Never connect to mains grid. The 150 watt inverter 12v to 220v output is not a regulated sine wave — verify load compatibility before connecting sensitive electronics. This Inverter Boost Module for building battery-powered AC supply systems in controlled and properly insulated project enclosures.

Related Product:

• Checkout XL6009 DC-DC Adjustable Step Up Converter Module

Features:

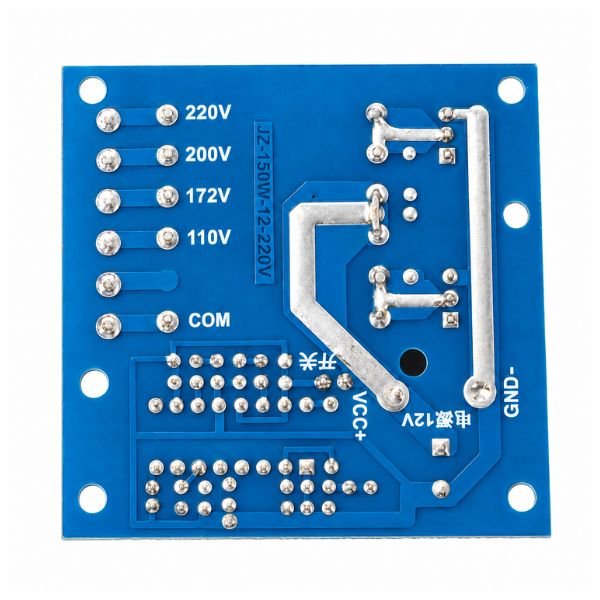

• Output voltage at 110V, 172V, 200V, and 220V AC from one module
• 150W continuous output powers LED lighting and low-wattage AC device loads
• 20 kHz switching eliminates audible transformer hum in output waveform
• 0.05A quiescent current minimises battery drain during no-load standby operation
• Compact 58 × 58 × 25 mm PCB fits custom inverter enclosure designs.

Technical Specifications:

 Applications:

• 150W 12V DC to 220V AC Inverter Boost Module powers 220V led lamp from 12V battery.
• DC to AC inverter module supplies 220V AC to low-wattage tools from off-grid solar battery systems.
• Inverter boost module powers portable battery pack builds.
• 150W dc 12V to ac 220V inverter boost module runs small fan motor from 12V battery
• DC to AC inverter board provides 110V AC output for international device compatibility.

Package Include:

• 1 x 150W 12V DC to 220V AC Inverter Boost Module Board
