- Resistance: 1k Ohm
- Tolerance: 10 %
- Temperature coefficient: ±100 ppm/ºC
- Operating temperature range: -55ºC to +125ºC
- Mounting type: Through-hole

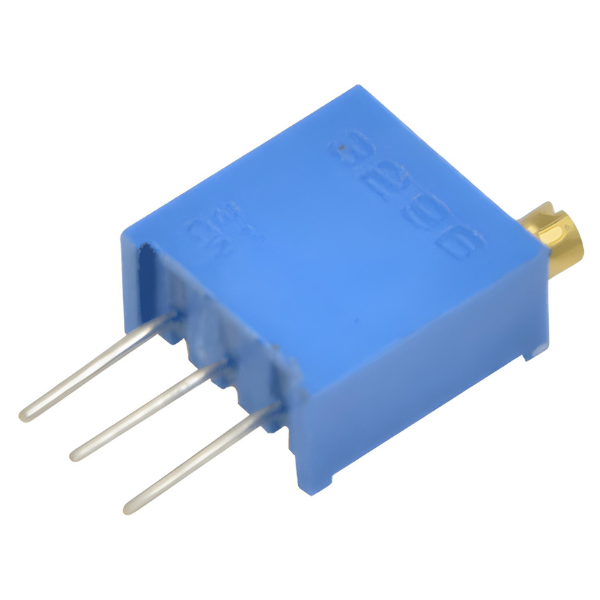

1K Trimpot Trimmer Potentiometer
A Trimpot or trimmer potentiometer is a small potentiometer that is used for adjustment, tuning, and calibration in circuits. This potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver.
What are Potentiometers?
A potentiometer is a three-terminal resistor with a sliding or rotating contact that forms an adjustable voltage divider.
Specifications:
| Resistance | 1K Ohm |
| Potentiometer Type | Trimpot |
| Tolerance | 10% |
| Operating Temperature Range (C) | -55 to 125 |
| Mounting Type | Through Hole |
| Dimensions | 9.8 x 4.9 x 17.8 mm |
| Weight | 10 gm |
Package Includes:
- 1 x 1K Trimpot Trimmer Potentiometer
