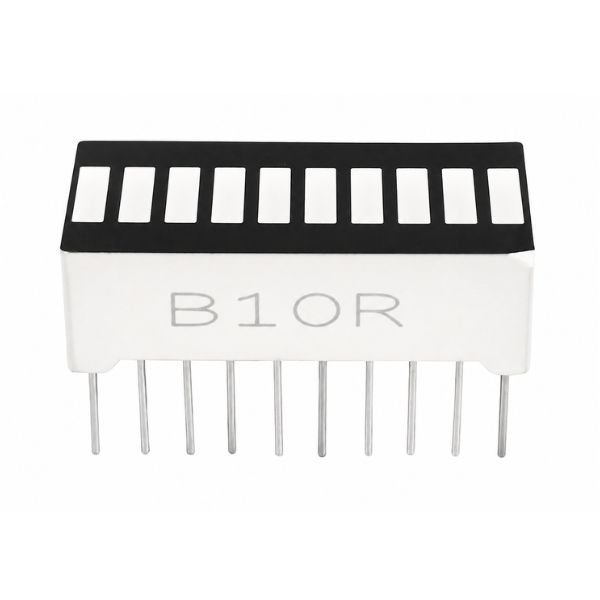

10-Segment Red LED Bar Graph Display

The 10-Segment Red LED Bar Graph Display is a linear ten-LED indicator strip where each of the ten individual red LED segments can be independently to represent a level, percentage, or quantity in a clearly visible bar format — a completely different display type from the TFT, OLED, LCD, and dot-matrix modules, which show text or graphics. The 10 segment display shows values the way a battery meter shows charge level or an audio mixer shows volume — each segment represents 10% of the total, so lighting five segments shows 50% and all ten shows full scale. This makes the red display bar graph the simplest and most immediately readable visual level indicator for any project that needs to show a quantity on a scale rather than display text or a number.

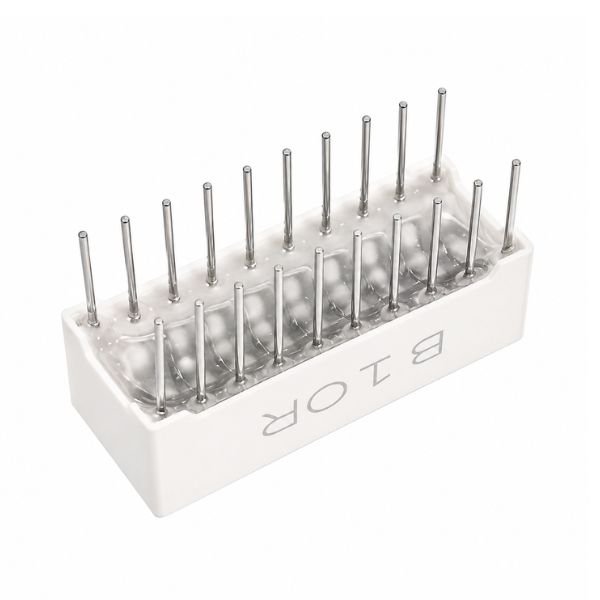

The 10 segment led bar graph uses common cathode configuration — all ten cathodes share a single ground connection, and each of the ten anodes is individually controlled through a current-limiting resistor from the microcontroller GPIO pin or shift register output. The 10 segment led bar arduino can connect the ten anodes directly to ten digital GPIO pins on an Arduino or ESP32, or to the outputs of a 74HC595 shift register to free up GPIO pins for other functions. The high-brightness 5050 SMD LED type provides bright red illumination visible in indoor environments without requiring high drive current. Available from StemVolt, This red led bar display arduino component is ideal for audio meter signal strength, water level and project led indicator display.

Related Product:

• Checkout 4 Digit 7 Segment 0.56 Inch Display Module

Features:

• 10-segment linear bar — shows levels percentages and quantities visually
• Common cathode — single shared GND with individual anode per segment
• 5050 high-brightness SMD LED — clearly visible in indoor ambient lighting
• No driver IC needed — connect anodes to GPIO or shift register
• Each segment intuitive level reading at any viewing distance

Technical Specifications:

Applications:

• Arduino LiPo battery charge level display using 10-segment red bar graph
• Builds audio VU meter with red display bar graph on ESP32
• For 10 segment led bar arduino level indicator display demo
• Readout using 10-Segment Red LED Bar Graph Display on Arduino Uno
• Red led bar arduino for LED level indicator GPIO control lab build

Package Includes:

• 1 x 10-Segment Red LED Bar Graph Display
