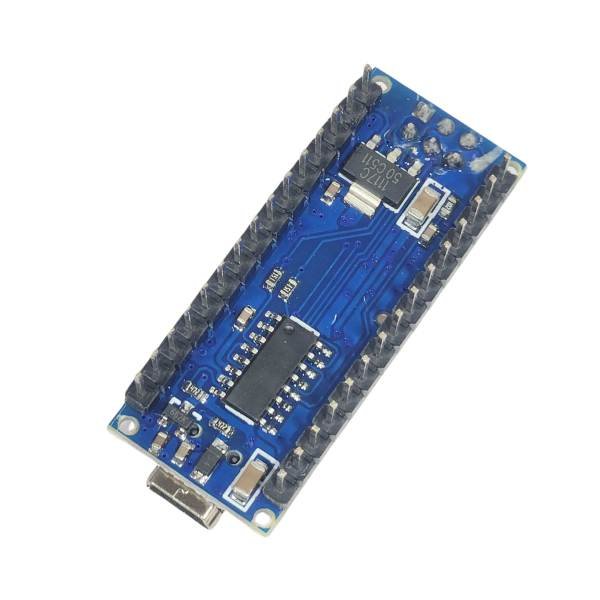

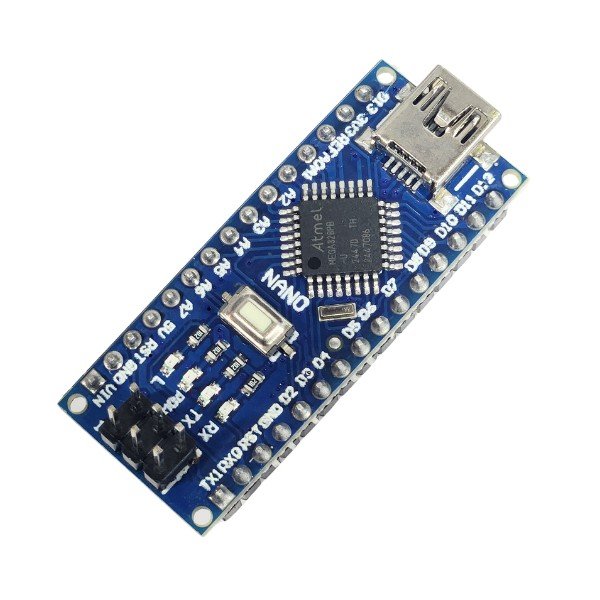

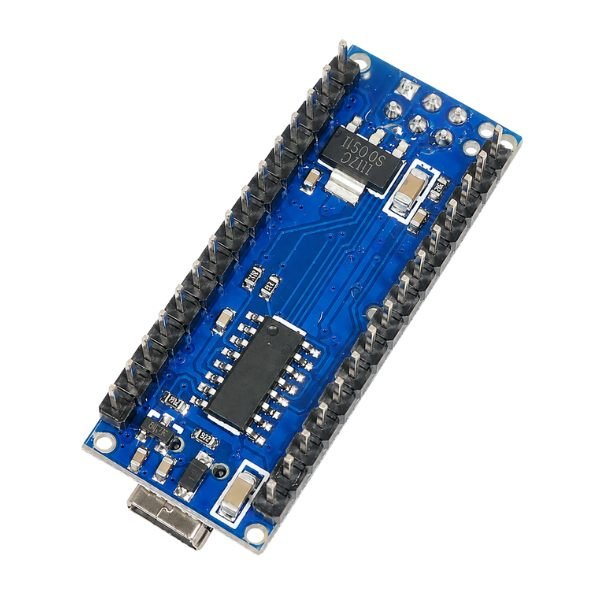

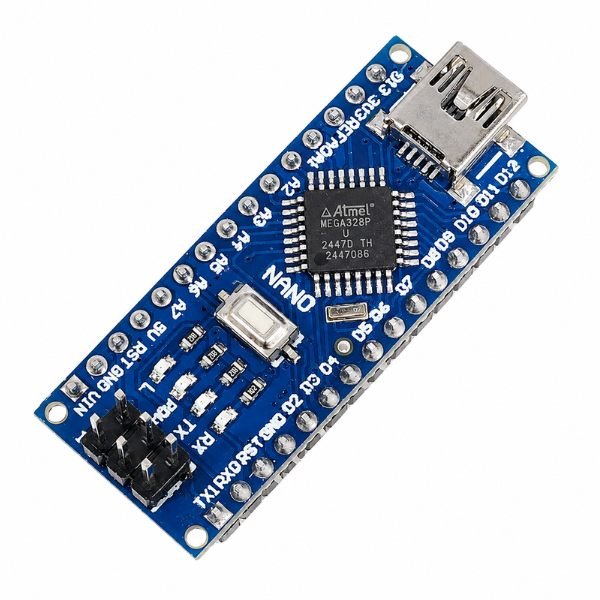

The Arduino Nano R3 Compatible Board with CH340 chip SOLDERED is a compact and efficient microcontroller board designed for embedded systems and prototyping where space is limited. It is based on the ATmega168 or ATmega328 microcontroller and offers similar functionality to larger boards like the arduino nano or UNO, but in a smaller footprint.
For Arduino based Projects used electronics component, due to its breadboard-friendly design and reliable performance. With 14 digital I/O pins and 8 analog inputs, it supports a wide range of sensors, actuators, and communication modules.
The Arduino Nano supports programming through a USB interface CH340, making it easy to upload code using the Arduino IDE. Its SMD version, often referred to as nano board (Soldered), ensures better stability.
StemVolt provides this Arduino Nano R3 Compatible Board for final-year engineering students working on IoT projects, robotics, and smart automation systems.
Related Products:
-
Check out The Arduino L293D Motor Driver Shield for Projects
Features:
- Arduino nano ATmega328 microcontroller
- 16 MHz clock for stable operation
- 14 digital I/O pins including PWM support
- 8 analog inputs for sensor interfacing
- This Arduino Board is Soldered
- Easy integration with common electronics module
Technical Specifications:
| Specification | Details |
|---|---|
| Microcontroller | ATmega168 or ATmega328 |
| Analog I/O Pins | 8 Pin |
| Clock Speed | 16 MHz |
| Digital I/O Pins | 14 Pin (6 PWM) |
| EEPROM | 512 bytes (ATmega168) / 1 KB (ATmega328) |
| Flash Memory | 16 KB (ATmega168) / 32 KB (ATmega328) |
| Input Voltage | 7V–12V |
| Operating Voltage | 5V |
| SRAM | 1 KB / 2 KB |
Applications:
- Used in IoT and automation projects
- Sensor-based monitoring systems
- Educational electronics experiments
- Compact electronics product development
- Prototyping with ATmega328P-AU surface-mount (SMD) microcontroller
Package Includes:
- 1 x Arduino Nano R3 Compatible Board
