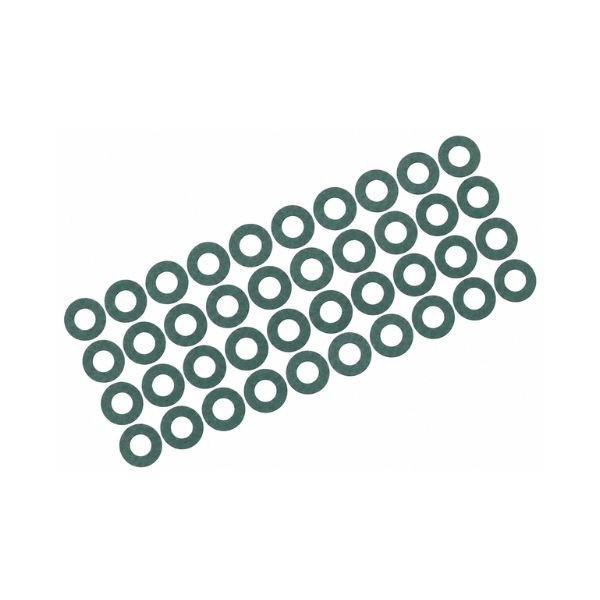

The 18650 lithium cell insulating adhesive ring pad prevents accidental short circuits at the positive terminal of an 18650 cell during battery pack assembly. The positive terminal of an 18650 cell is a raised button surrounded by a small gap where the cell casing, which is negative, sits close to the positive cap. During spot welding and pack assembly, nickel strip tabs and tools can bridge this gap and short the cell if the terminal edge is unprotected. The insulating ring pad sticks over the positive terminal edge, covering the exposed gap between positive cap and negative casing with heat-resistant insulating paper.
The lithium cell ring pad 20mm outer diameter covers the full positive terminal area of a standard 18650 cell while the 10mm inner diameter keeps the positive contact point exposed for the nickel strip connection. Adhesive backing holds the ring in place during handling and welding without slipping. The insulation paper ring 0.25mm thickness adds no meaningful height to the pack geometry. The battery insulation ring suits 18650 pack where cell to cell short circuit risk during assembly is a concern. These pads is working on 18650 battery pack construction and practical cell assembly. Available on StemVolt.
Related Product:
Features:
- Adhesive self-stick backing holds ring on cell terminal during assembly handling
- 20mm outer diameter covers full 18650 positive terminal and surrounding gap
- 10mm inner diameter keeps positive contact point exposed for nickel strip welding
- Heat-resistant paper withstands spot welding temperature at the cell terminal
- Pack of 20 covers multi-cell series and parallel pack assembly
Technical Specifications:
Applications:
- 18650 lithium cell insulating adhesive ring pad protects positive terminal during spot weld
- Insulation ring 18650 battery prevents short circuit at cell terminal in power bank
- Adhesive ring pad protects 18650 positive cap during parallel group assembly in EV
- Battery insulation ring covers positive terminal gap in DIY robot chassis battery
- Lithium ion insulation ring protects cell during BMS board tab welding in custom pack
Package Includes:
- 1 × 18650 Lithium Cell Insulating Adhesive Ring Pad
Gurmeet Dhillon –
Fully satisfied with quality
Advait Kulkarni –
The lithium-ion insulation ring quality was excellent, and professional packaging kept everything intact.
Ranveer Shekhawat –
These 18650 battery insulation rings fit perfectly and added extra protection to my battery pack.
Madhavan Iyengar –
Handy for battery packs
Nilanjan Chakraborty –
Loved this small accessory
