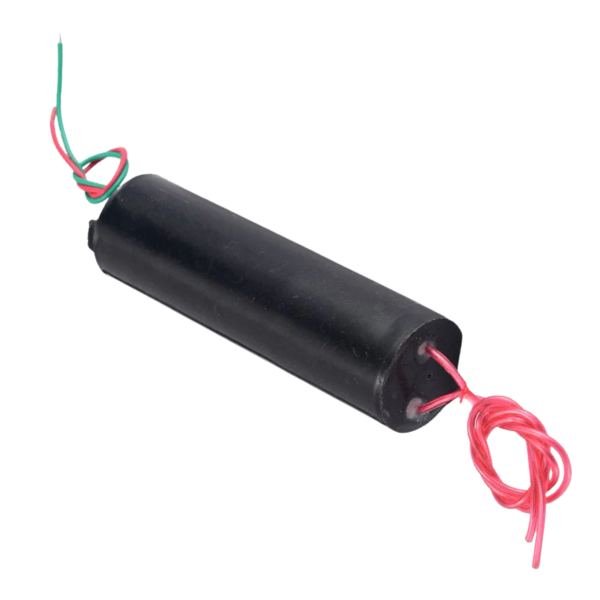

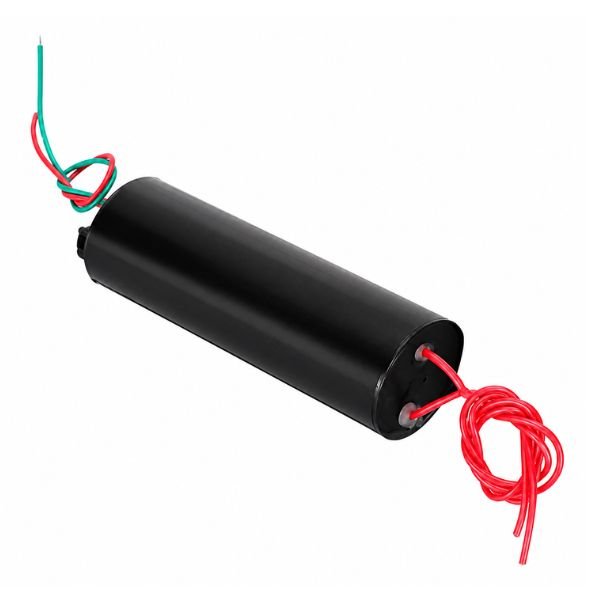

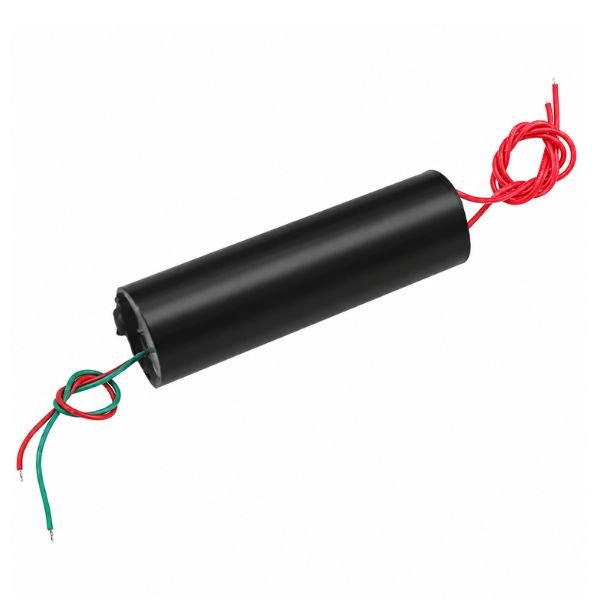

1000 KV High Voltage Booster Module

The 1000 KV High Voltage Booster Module takes a low input of 3V to 6V DC and steps it up to produce a pulsed high voltage output of up to 1000kV. A high voltage module like this works through a flyback circuit (a transformer-based design that stores and releases energy in sharp bursts) to generate the arc. The output appears as visible electrical sparks.

The voltage booster module draws 2A to 5A from its input supply, so your power source must handle that current comfortably. One non-obvious fact: the output is pulsed, not continuous DC, which means it delivers rapid burst discharges rather than a steady voltage. The honest limitation of this 1000kV high voltage generator is that arc length varies with humidity — dry air gives longer, cleaner arcs than moist air.

The 1000kV high voltage module does not connect to a microcontroller directly. Electronics hobbyists working on high-voltage booster module use it most. Apply 3V to 6V DC to the input terminals to start the arc instantly. StemVolt provide this module individually tested for visible arc output.

Related Product:

• Check out the 400KV Step up Power Module Voltage Generator

Features:

• Input voltage of 3V to 6V DC powers the step-up booster from standard battery sources.
• Output reaches up to 1000kV as pulsed high voltage for visible electrical arc generation.
• Input current of 2A to 5A means your supply must deliver sufficient current continuously.
• Step-up booster module type converts stored magnetic energy into high voltage burst pulses.

Technical specifications:

Applications:

• A physics experiment shows students how step-up voltage conversion works in practice.
• The 1000 KV High Voltage Booster Module powers a Jacob’s Ladder arc display at 3V to 6V.
• A 1000kV high voltage generator module drives a plasma display tube through pulsed output.
• An advanced discharge experiment measures arc gap distance at different input voltage levels.

Package includes:

• 1 x 1000 KV High Voltage Booster Module
