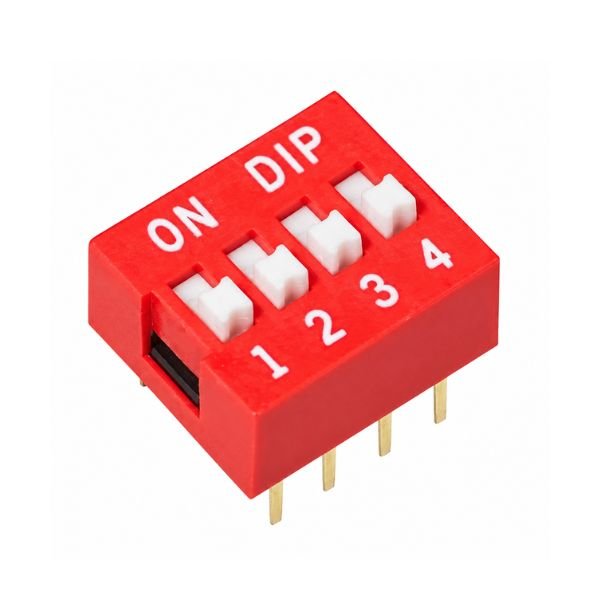

4 Way Slide Dip Switch – 2.54mm Pitch

The 4 Way Slide Dip Switch – 2.54mm Pitch packages multiple miniature slide switches into a single through-hole component body. Each switch operates independently – slide it one direction for ON, the other for OFF. The dip switch provides four such switches in one 2.54mm pitch package, giving 16 possible on/off combinations across the four channels. That binary configuration makes it the standard component for address selection, jumper replacement, and mode setting on PCBs.

The 4 way slide switch 2.54mm pitch matches standard breadboard hole spacing and most PCB through-hole DIP footprints, dropping into an existing layout without footprint modification. The 4 pin dip switch handles logic-level signal switching – I2C address lines, SPI chip select configuration, UART baud rate selection, and microcontroller enable pins without handling power-level currents that require relay or MOSFET switches.

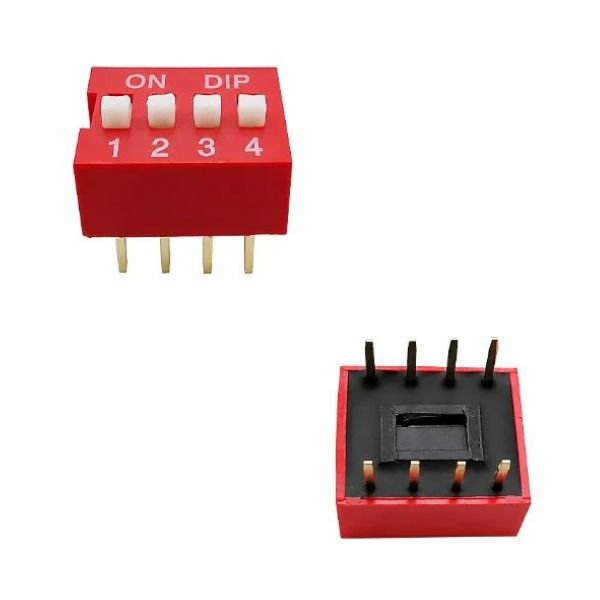

The on dip 1234 switch labelling on the switch body marks each channel position clearly so configuration reading and setting takes seconds without counting individual pins along the row. This 4 way slid switch is available on StemVolt for makers working on digital circuit configuration and PCB address selection.

Related Product:

• Checkout 3 Pin Rocker Switch Black SPDT

Features:

• 4 Channels each slide to ON or OFF position separately
• ON DIP 1234 labelling identifies each switch channel without counting individual pins
• 30V DC 0.15A rating suits I2C, SPI, and UART logic-level signal switching
• Operating temp range -40°C to +85°C covers outdoor deployment environment

Technical Specifications:

Applications:

• 4 Way Slide Dip Switch sets I2C device address on multi-sensor and Arduino
• Mini Slide Switch configures node ID on RF mesh network multi-board deployment
• Four channel slide switch enables and disables firmware features without code re-flashing
• Slide switch set SPI chip select lines on multi-peripheral microcontroller

Package includes:

• 1 x 4 Way Slide Dip Switch
