6 Way Slide Dip Switch – 2.54mm Pitch

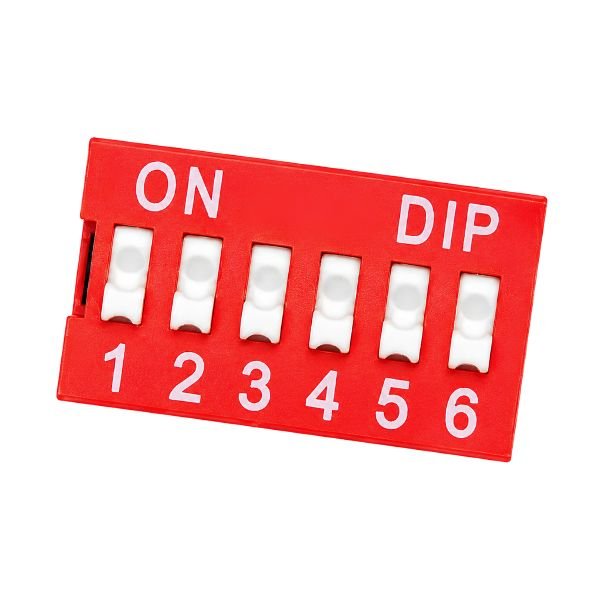

The 6 Way Slide Dip Switch – 2.54mm Pitch in one through-hole DIP package produce 64 possible binary configuration states – each of the six channels sits either ON or OFF independently from the others. The  six independent slide switchesuses that six-channel layout at 2.54mm pitch, matching standard breadboard spacing and the most common PCB DIP footprints used in digital circuit design. Moving from a 4-way to a 6-way switch doubles the available address range, which is why the 6-channel variant is the standard choice for DMX512 lighting controller address selection where 6 bits cover address values 1 through 64.

The 6 way slide switch actuator on each channel requires deliberate finger force to change position, making accidental switching from vibration unlikely in field-deployed devices where configuration should remain fixed after initial setup. At 30V DC and 0.15A, the dip switch handles logic-level signal switching across I2C address lines, SPI configuration, UART baud rate selection, and enable inputs without dealing with power-level currents.

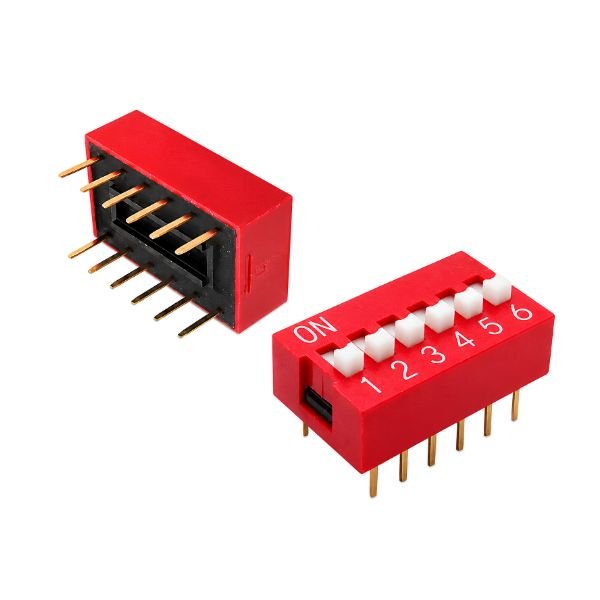

The mini slide switch compact body keeps PCB real estate usage low even with six channels present. Operating temperature from -20°C to +80°C covers indoor industrial panel and standard enclosure environments.The 6 pin slide switch through-hole body solders onto PCB pads in the standard DIP orientation. This switch for makers working on digital circuit configuration.

Related Products:

• Checkout Roller Lever Micro Switch SPDT 3-Pin

Features:

• 6 Channels produce 64 binary configuration states across all positions
• 2.54mm pitch matches standard breadboard and PCB DIP through-hole footprints
• Deliberate slide force prevents accidental position change from vibration or contact
• 30V DC 0.15A covers I2C, SPI, UART, and address pin signal switching needs

Technical Specifications:

Applications:

• 6 Way Slide DIP Switch sets 6-bit DMX512 start address on lighting controller boards
• Dip switch configures I2C device address on multi-sensor PCB without code modification
• Slide switch selects baud rate and protocol mode on serial communication boards
• Mini slide switch enables and disables six independent features on embedded system

Package includes:

• 1 x 6 Way Slide Dip Switch
