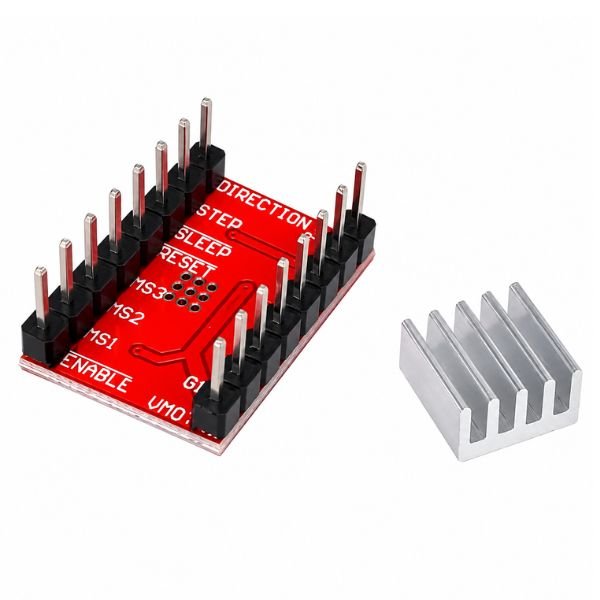

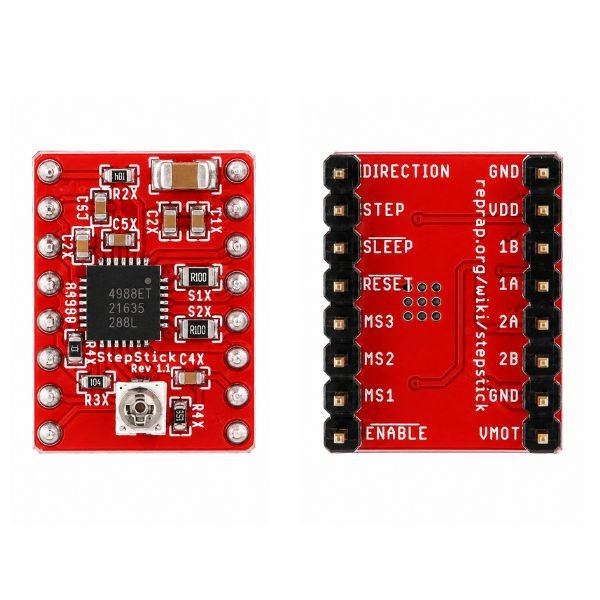

A4988 Stepper Motor Driver Module

The A4988 Stepper Motor Driver Module uses the A4988 IC to drive bipolar stepper motors, offering full, 1/2, 1/4, 1/8, and 1/16 microstepping modes, with adjustable current control via onboard potentiometer, thermal and short circuit protection, and a STEP/DIR logic interface. Unlike the ULN2003A driver covered separately that drives unipolar 28BYJ-48 hobby steppers through 4-phase sequential pin control, this a4988 stepper motor driver targets bipolar NEMA 17 motors used in 3D printers, CNC machines, and precision automation systems.

The stepper motor driver’s STEP/DIR interface is simpler to use than 4-wire phase sequencing — one digital pulse on the STEP pin advances the motor one step, while the DIR pin level sets the direction, allowing any microcontroller including basic arduino stepper motor driver setups to control complex stepper motion with minimal pin usage and a standard stepper library. Per the a4988 pinout, MS1/MS2/MS3 pins select the microstepping resolution — at 1/16 mode, a standard 200-step NEMA 17 completes 3200 microsteps per revolution for noticeably smoother, quieter motion than full-step operation.

the a4988 microstepping driver’s onboard current-limit potentiometer must be calibrated correctly for the connected motor’s rated current before first use — too high a current setting causes motor overheating, while too low a setting causes missed steps or insufficient torque. Available from StemVolt, India’s trusted robotics and electronics component store, this A4988 Stepper Motor Driver Module is ideal for enthusiasts building precise motion control systems, CNC machines, and 3D printer projects.

Related Product:

• Checkout DC Stepper Motor 55mm

Features:

• 1/16 microstepping gives 3200 steps/rev for ultra-smooth NEMA 17 motion
• STEP/DIR interface simplifies control to two Arduino digital pins
• Adjustable current potentiometer matches driver output to motor rating
• Thermal and short circuit protection prevents driver and motor damage
• MS1/MS2/MS3 pins select from 5 microstepping resolution modes

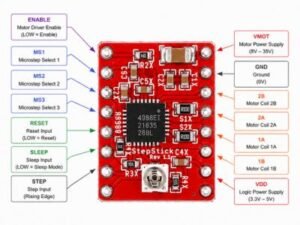

Pin diagram of A4988 stepper motor driver:

Technical Specifications:

 Applications:

• A4988 used for Arduino CNC router NEMA 17 axis control build
• College project a4988 stepper motor driver for microstepping demo
• Used for 3D printer stepper motor driver Z-axis precise movement
• Camera slider uses arduino stepper motor driver for smooth panning control
• Laser engraver a4988 microstepping for fine position accuracy

Package Includes:

• 1 x A4988 Stepper Motor Driver Module
