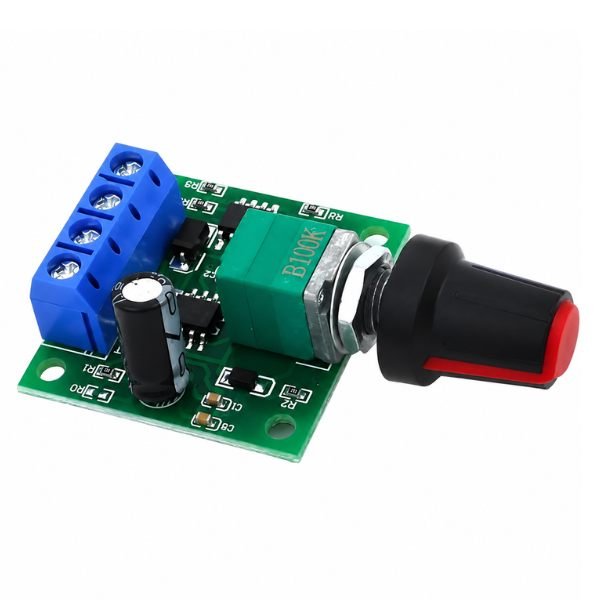

DC Motor PWM Speed Controller 1.8V to 12V 2A

The dc motor PWM speed controller 1.8V to 12V 2A operates from 1.8V to 12V DC at up to 2A and 30W maximum output power, using pulse width modulation with high efficiency and low heat generation. This motor speed controller’s 1.8V minimum operating voltage is the lowest in PWM controller lineup controllers like the CCM5D or 1203B both start at 6V, this module uniquely covers very low voltage motors including 3V hobby motors and small 5V DC fans that would be outside the operating range of higher minimum controllers.

The pwm speed control module’s PCB-mounted design without an enclosure distinguishes it from stand alone housed controllers it is intended to be embedded directly into a project’s own enclosure or circuit board assembly, making it compact and integration friendly. This dc voltage regulator 12v module’s explicitly stated low heat generation reflects high PWM switching efficiency, where the driver transistor spends minimal time in the partially on transition state that generates heat.

This pwm controller 12v’s bare PCB mounted form factor without an enclosure means mounting, heat sinking if needed and mechanical protection, unlike enclosed controllers that offer more physical durability out of the box, making it a choice for battery powered or thermally sensitive enclosed. This controller is available on StemVolt and is working on developing embedded variable-speed motor control systems and 12v 2a pwm motor speed controller electronics projects.

Related Product:

• Checkout 12V–40V PWM Speed Controller 10A

Features:

• 1.8V minimum covers 3V hobby motors outside higher-minimum controllers’ range
• High PWM efficiency with explicitly low heat generation
• 30W maximum output power at 2A for light-duty motor
• PCB mounted bare board for direct project enclosure embedding
• 1.8V-12V range suits AA battery, LiPo, and 12V motor systems

Technical Specifications:

Applications:

• PWM speed controller 1.8V to 12V 2A used for AA battery 3V hobby motor speed
• College project uses motor speed controller for 1.8V low voltage
• RC model uses pwm speed control for India LiPo battery motor control
• Embedded device uses dc motor speed controller for board-level motor drive
• Wearable robot uses 12v 2a pwm motor speed controller for compact motor control

Package Includes:

• 1 x DC Motor PWM Speed Controller 1.8V to 12V 2A
