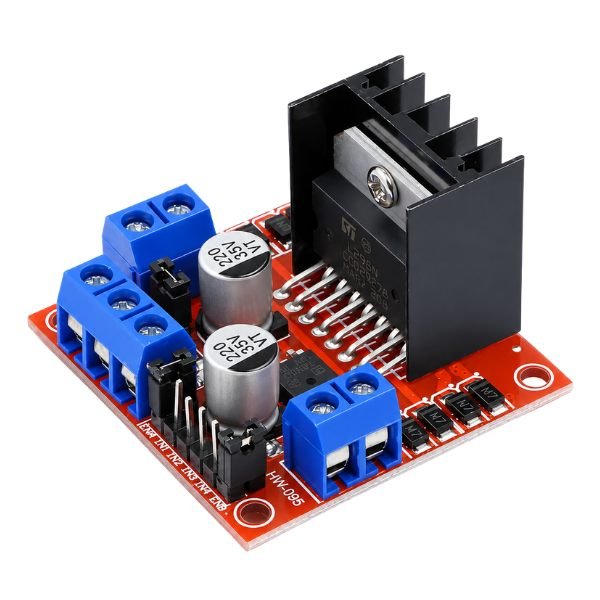

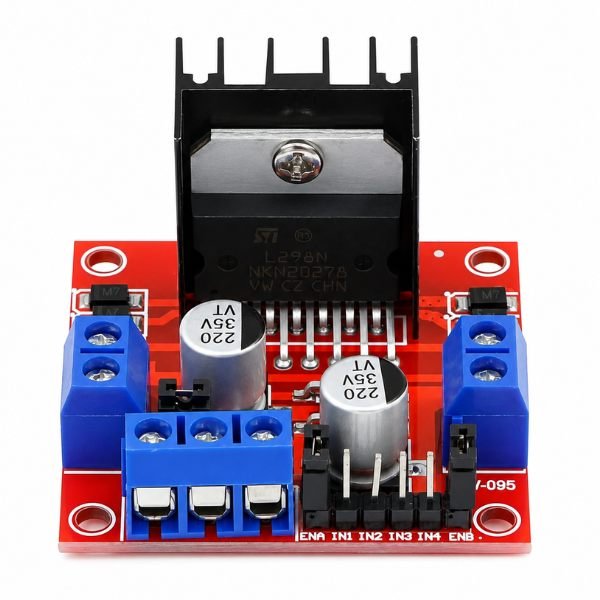

L298 Dual DC Motor Driver Module

The L298 Dual DC Motor Driver Module uses the L298N dual H-bridge IC, supporting 2 DC motors with 3.2V to 40V input and 5V to 35V operating voltage, PWM speed control, TTL compatible logic, and 20W maximum power consumption. This l298d motor driver is the higher-current H-bridge option compared to the L293D covered separately — the L298N is capable of delivering significantly more current per channel, making it the preferred choice for robotics builds using larger gear motors or higher-torque drive motors that exceed the L293D’s 600mA per channel rating.

The motor driver l298n price reflects a module that provides independent bidirectional control of motors on both channels simultaneously — each channel’s H-bridge can be set to forward or reverse direction while its PWM enable pin controls motor speed, giving a differential-drive robot full independent control of left and right drive wheels with a single l298 motor driver board. The motor driver pins follow a standard logic arrangement: direction is set through IN1/IN2 (and IN3/IN4 for the second motor) using Arduino digital outputs, while the ENA/ENB enable pins accept PWM signals for speed adjustment.

the l298n dual h bridge motor driver’s linear transistor output stage generates more heat under load compared to modern MOSFET-based motor drivers — at higher current draw and continuous operation, an adequate heat sink on the L298N chip is recommended to prevent thermal shutdown. The l298 motor driver module, available from StemVolt, is an excellent choice for makers and electronics enthusiasts building DC motor control systems, robotic projects, and arduino-based automation projects.

Related Product:

• Checkout RS-380 DC Motor High Speed Motor

Features:

• L298N H-bridge delivers higher current than L293D for larger motors
• Bidirectional control of both motors with independent direction setting
• PWM-compatible enable pins for variable speed on each channel
• TTL logic inputs work directly with 5V Arduino digital pins
• 3.2V–40V input range suits 12V, 24V motor power supplies

Technical Specifications:

 Applications:

• L298N used for Arduino higher-torque differential drive robot
• College project uses l298d motor driver for H-bridge current demo
• Line follower uses l298 motor driver for India dual gear motor control
• RC vehicle uses l298n dual h bridge motor driver for drive and steer
• Automation uses bidirectional control of motors for conveyor direction

Package Includes:

• 1 x L298 Dual DC Motor Driver Module
