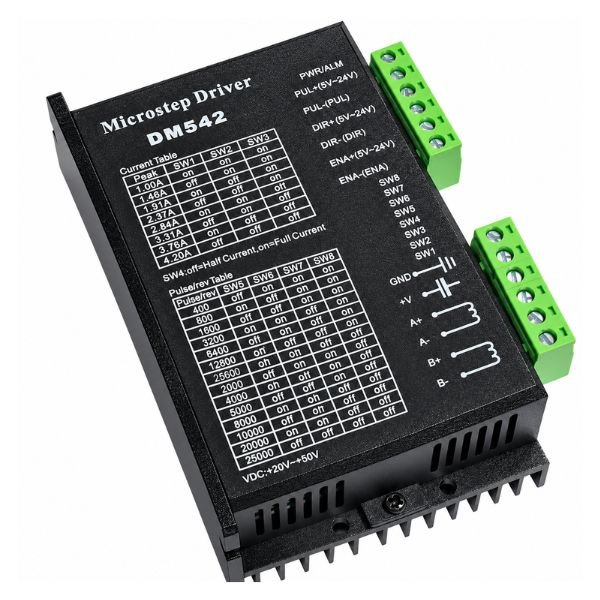

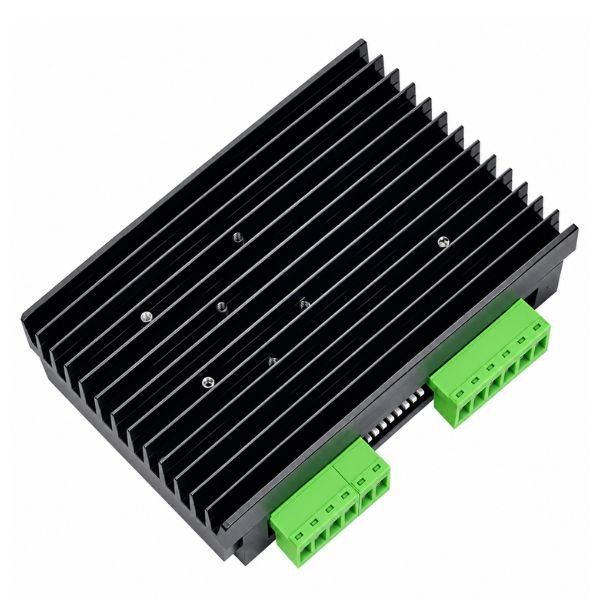

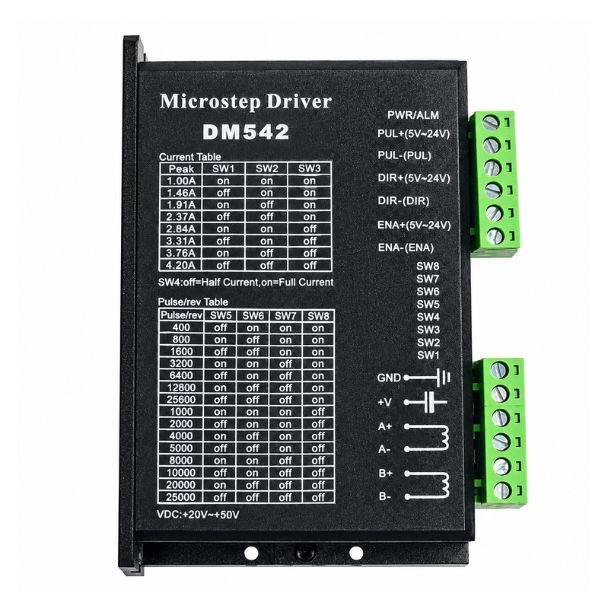

DM542 DSP Digital Stepper Motor Driver

The DM542 DSP Digital Stepper Motor Driver uses digital signal processing to adaptively tune current waveform delivery to the connected stepper motor that output a fixed waveform regardless of motor characteristics. That adaptive DSP control reduces motor noise, lowers motor heating at idle and mid-speed, and produces smoother shaft rotation across the full speed range compared to analogue driver alternatives at equivalent current settings. For CNC machine and precision motion system, that difference in smoothness is audible and measurable in finished surface quality.

The dm542 microstep driver supports microstep resolutions from 400 pulses per revolution up to 25,000 pulses per revolution, configurable through onboard DIP switches. Standard full-step operation on a 200-step motor runs at 200 pulses per revolution the DM542 subdivides each step into finer increments, reducing the angular distance between positions to as low as 0.0144° per pulse at maximum resolution. That fine positioning capability suits lead screw-driven linear axes where each pulse corresponds to a fraction of a micron of linear travel at typical lead screw pitches.

The dsp stepper motor driver output peak current of 1A to 4.2A covers the current range of most NEMA17 and NEMA23 bipolar stepper motors used in desktop CNC routers, laser engravers, and 3D printer axis drives. Supply voltage from 20V to 50V DC allows the motor to achieve higher top speed before losing torque – a 48V supply on a NEMA23 motor produces meaningfully higher top-end torque than a 24V supply at the same current setting.

Control signal input accepts 5V to 24V pulse and direction signals, connecting directly to GRBL controllers, Mach3 breakout boards, Arduino with step/dir output, and industrial PLC pulse outputs. The stepper motor driver suits CNC router axis drives, laser engraver carriages, and precision linear positioning. This DM542 dsp motor driver is available on StemVolt, and its working on stepper motor control and practical CNC motion system.

Related Product:

• Explore Motor Drivers and Regulators
• Checkout 17HS4401 NEMA17 Stepper Motor

Features:

• DSP adaptive waveform reduces motor noise and heating versus analogue drivers
• 1A to 4.2A peak current covers NEMA17 and NEMA23 bipolar stepper motors
• 25,000 pulses/rev maximum microstep resolution for ultra-fine axis positioning
• 20V to 50V supply range maximises high-speed torque on NEMA23 motor builds
• 300 kHz pulse input handles high-speed step pulses from GRBL and Mach3 controllers

Technical Specifications:

 Applications:

• Drives X and Y axis NEMA17 motor for smooth, high-precision milling and cutting.
• DM542 DSP digital stepper motor driver powers heavy-duty axis motors to ensure precise layer alignment.
• Microstep motor driver drives NEMA23 motor on large-format 3D printer axis
• Drives rotary stepper tables on precision machining fixtures with high torque accuracy.

Package Include:

• 1 x DM542 DSP Digital Stepper Motor Driver
