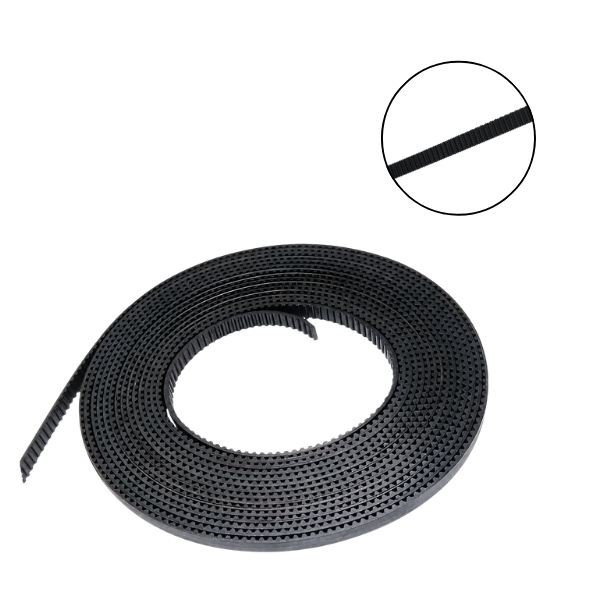

The GT2 6mm Open Timing Belt 1 Meter is a 2mm pitch, 6mm wide open-loop timing belt with a glass fiber core wire, supplied as a 1 metre straight length for cutting to any required size for linear motion systems. The GT2 designation refers to the specific tooth profile standard — 2mm pitch means each tooth is spaced 2mm apart, making this gt2 timing belt compatible with standard GT2 20-tooth pulleys widely used in 3D printers, CNC routers, and laser cutter motion systems.
The gt2 belt 6mm’s glass fiber core wire is a key material choice for precision linear motion — glass fiber has very low elasticity compared to standard rubber belts, meaning the belt stretches minimally under the tension loads generated by stepper motor acceleration and deceleration, which directly preserves positional accuracy in a 3D printer’s X and Y axis movements. This timing belt for 3d printer being supplied as an open (non-closed) loop means it can be cut to the exact length needed for any axis travel distance, unlike closed-loop belts fixed to specific circumferences.
this gt2 open belt requires joining hardware (belt clips or tie-off brackets) to secure cut ends to a carriage and tensioner, adding an assembly step that a pre-made closed-loop belt for fixed-length applications would skip. This StemVolt belt is well-suited for makers and engineers building precise GT2 belt-driven linear motion systems and practical 3D printer and CNC axis upgrade projects.
Related Product:
- Checkout GT2 Timing Pulley Set
Features:
- GT2 2mm pitch matches standard GT2 pulleys universally
- Glass fiber core minimises stretch for precise linear positioning
- Open loop 1 metre length cuts to any required axis distance
- 6mm width suits standard GT2 pulley and idler combinations
- Compatible with 3D printer, CNC router, and laser cutter motion systems
Technical Specifications:
Applications:
- GT2 Belt used for 3D printer X/Y axis belt replacement build
- College project uses gt2 timing belt for linear motion system demo
- CNC router uses gt2 belt 6mm for India gantry axis belt drive
- Laser cutter uses timing belt for 3d printer compatible pulley system
- DIY plotter uses gt2 open belt for pen carriage linear drive
Package Includes:
-
1 x GT2 6mm Open Timing Belt 1 Meter
