GT2 Timing Pulley Set 60Teeth and 20Teeth Aluminum Wheel with Belt for 3D Printer

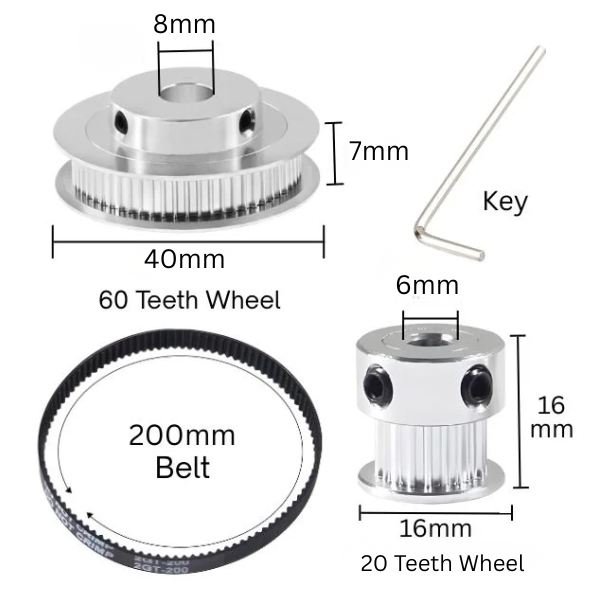

The GT2 Timing Pulley Set 60Teeth and 20Teeth Aluminum Wheel a 60-tooth aluminum pulley (40mm × 7mm, 8mm bore), and a 200mm GT2 rubber timing belt — a ready-to-install 3:1 belt-drive reduction package. This gt2 pulley set’s included 200mm belt length is not arbitrary — it defines the fixed center-to-center shaft distance at which the 20T and 60T pulley pair will operate with correct belt tension, meaning builders planning this reduction stage need to position both shafts at the distance the 200mm belt requires to maintain proper mesh engagement.

Correct belt tension is a practical installation detail for this pulley for 3d printer application — too little tension allows the belt to skip teeth during high-torque direction reversals, losing positional accuracy, while over-tensioning accelerates bearing wear on both shafts. This gt2 timing pulley 3d printer set uses a rubber belt rather than a glass-fiber-reinforced belt — rubber offers greater flexibility for closed-loop operation around both pulleys simultaneously, though it has marginally more stretch than glass fiber under identical loads, which is acceptable given the torque transmission role rather than linear positioning role of this reduction stage.

this aluminium timing pulley wheel set’s 200mm rubber belt is specific to this pulley configuration — replacing it with a different belt length requires recalculating and re-spacing both shaft positions, making the whole assembly a fixed-geometry unit. Available from StemVolt, this unit is suitable for developers working on belt-drive gear reduction and practical 3D printer and CNC torque amplification projects.

Related Product:

• Checkout Aluminum Coupler 5mm to 8mm
• Explore 3D Printer & Parts

Features:

• 200mm belt length pre-defines correct shaft center distance for the set
• Rubber belt suited for closed-loop flexibility around both pulleys
• CNC machined aluminum pulleys for accurate GT2 tooth engagement
• Complete ready-to-install set without separate belt sourcing needed

Technical Specifications:

Applications:

• GT2 Set used for 3D printer extruder torque multiplication build
• College project uses gt2 pulley set for gear ratio mechanics demo
• CNC rotary axis uses pulley for 3d printer set for India spindle drive
• Robotics uses gt2 timing pulley for belt-drive speed reduction joint
• DIY winder uses 60 teeth pulley set for controlled filament spool drive

Package Includes:

• 1 x GT2 Timing Pulley Set 60Teeth and 20Teeth Aluminum Wheel
