KK 2.1.5 Multirotor Flight Controller Board with LCD

The KK 2.1.5 Multirotor Flight Controller Board with LCD is a beginner-friendly flight controller for quadcopters and multirotors, featuring an onboard LCD screen and push-button menu that allows the pilot to calibrate sensors, configure motor layout, and adjust self-level settings directly on the board without connecting to a computer or installing any software — making it one of the simplest drone flight controllers to set up for a first-time drone builder in India. The kk2 1.5 flight controller runs on an Atmel ATmega644PA 8-bit AVR microcontroller with an MPU6050 six-axis gyroscope and accelerometer providing the stabilization sensor data that keeps the drone level during flight.

The flight controller for drone supports 2 to 8 motor outputs, covering quadcopter (4 motor), hexacopter (6 motor), and octocopter (8 motor) multirotor configurations from a single board and firmware version — the motor layout is selected from the onboard LCD menu rather than in software, which is the key practical advantage of the KK2.1.5 over more advanced FCs for beginners who have not used ground control station software before. The KK2.1.5 comes with stable firmware pre-loaded and is powered from the 4.8V to 6.0V BEC output of the receiver or ESC rather than directly from the main LiPo, and provides self-level and acrobatic flight modes without GPS, compass, or barometric altitude hold features.

The drone flight controller’s compact 52×52×12mm form factor fits in the center of standard F450 and F550 frames without additional mounting hardware in most cases. Available from StemVolt, offering quality electronics parts at competitive prices. This flight controller under 5000 is ideal for beginner F450 first DIY quadcopter and STEM drone flight controller builds in India.

Related Product:

• Checkout Pixhawk 2.4.8 PX4 32-Bit Flight Controller

Features:

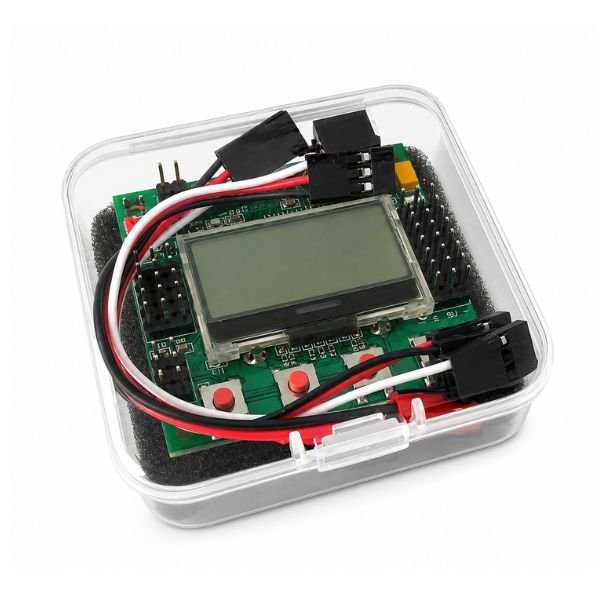

• LCD and push-button menu — calibrate and configure without software
• ATmega644PA with MPU6050 — stable 6-axis stabilization for beginner builds

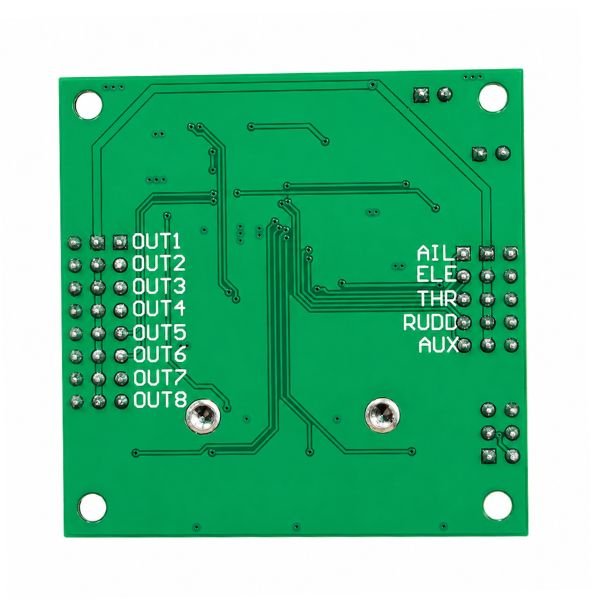

• Supports 2-8 motor outputs — quad hex octo from one board
• Pre-loaded firmware — ready to fly after basic LCD menu calibration
• 52×52mm compact form install F450/F550 quadcopter drone center plate directly

Technical Specifications:

Applications:

• F450 quadcopter drone with KK2.1.5 self-level flight controller
• Drone maker builds quad with kk flight controller and LCD
• For kk2 1.5 flight controller beginner drone assembly demo
• drone flight controller for 4-8 motor multirotor lab build

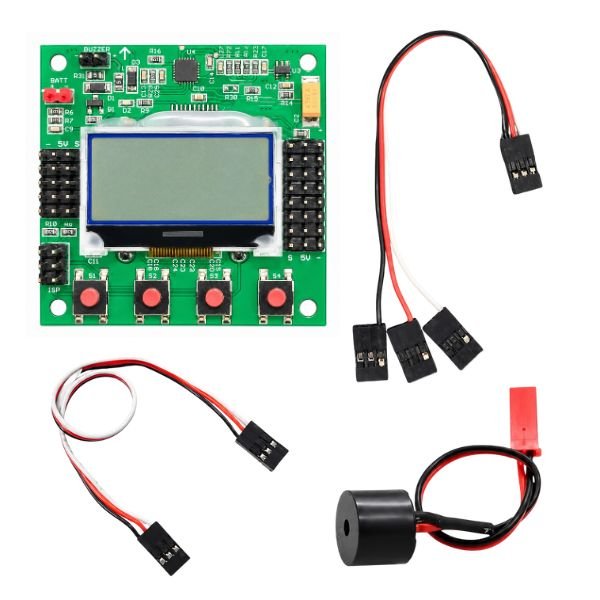

Package Includes:

• 1 x KK 2.1.5 Multirotor Flight Controller Board with LCD
