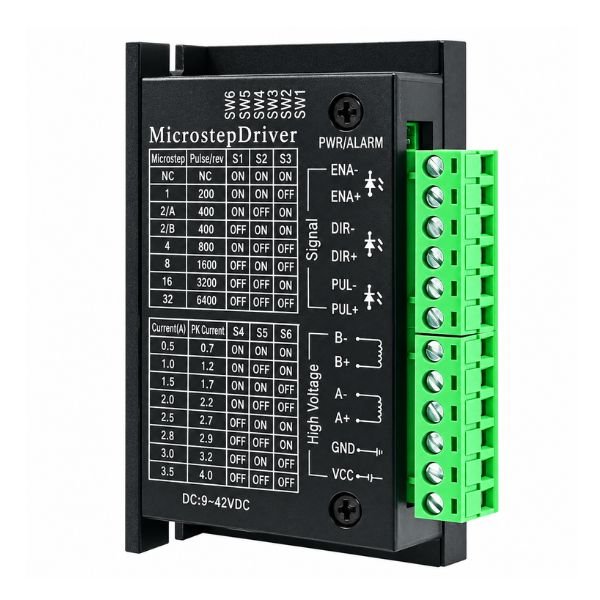

TB6600 Stepper Motor Driver – 9-42V Microstep Driver

The TB6600 Stepper Motor Driver – 9-42V Microstep Driver controls a bipolar stepper motor by switching current through the motor’s two coil pairs in precise sequences that move the shaft one step at a time. The TB6600 IC handles that switching internally – the user sets the output current limit and microstep division using onboard DIP switches, then supplies step and direction pulses from a controller to move the motor. That step-and-direction interface is the universal language of CNC motion control.

The tb6600 microstep motor driver supports seven microstep settings up to 32 subdivisions. Full-step operation moves a standard 200-step motor 1.8° per step. At 32-microstep the same motor responds to 6400 pulses per revolution at 0.05625° per pulse – dramatically smoothing motion and reducing vibration at low speeds compared to full or half-step operation. The seven settings between full-step and 32-microstep give the engineer flexibility to trade off smoothness against pulse frequency requirements at different operating speeds.

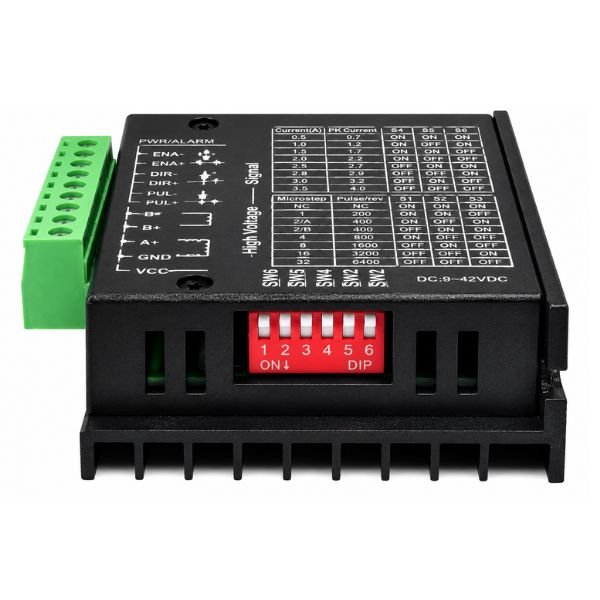

The stepper motor driver output current adjusts from 0.5A to 4.0A peak through DIP switch – matching the driver output to the motor’s rated current prevents overheating in the motor windings. The control signal input accepts 3.3V to 24V logic, connecting directly to ESP32, Arduino, and PLC pulse outputs without additional level shifting. The TB6600 offers lower cost at slightly reduced maximum voltage and lacks DSP adaptive waveform tuning, covers most standard CNC and 3D printer axis applications. This TB6600 Stepper Motor Driver is available on StemVolt, and its working on stepper motor control and motion system.

Related Product:

• Checkout BTS7960B 43A H-Bridge Motor Driver Module

Features:

• Microstep maximum 32 resolution reduces vibration and smooths low-speed motion
• Current adjustable via DIP switch to match motor rated specification
• 9V to 42V supply range covers 12V, 24V, and 36V CNC supply rail standards
• 7 microstep settings give flexibility between smoothness and pulse frequency

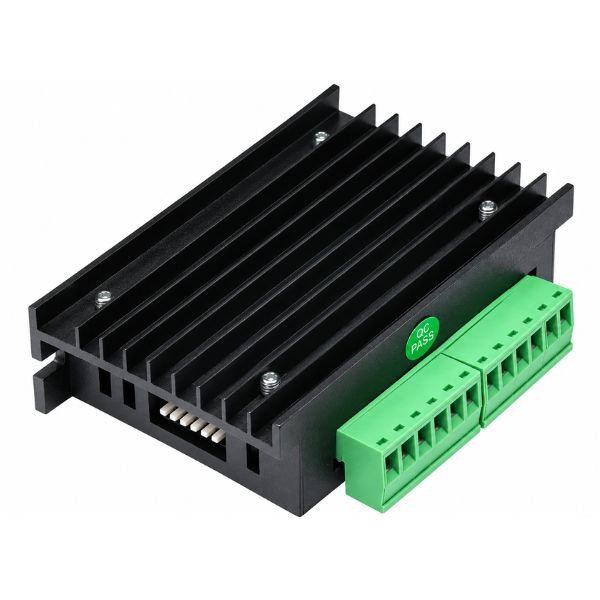

• Integrated heatsink frame manages thermal load during sustained motor drives

Technical Specifications:

Applications:

• TB6600 Stepper Motor Driver drives X and Y axis on desktop CNC router project
• DSP stepper motor driver controls Z axis lead screw on laser engraver carriage
• Stepper motor driver NEMA17 motor on large-format 3D printer axis.
• Microstep driver controls rotary axis stepper on 4-axis CNC engraver machine
• microstep driver alternative TB6600 drives linear rail on pick-and-place machine

Package Include:

• 1 x TB6600 Stepper Motor Driver – 9-42V Microstep Driver
