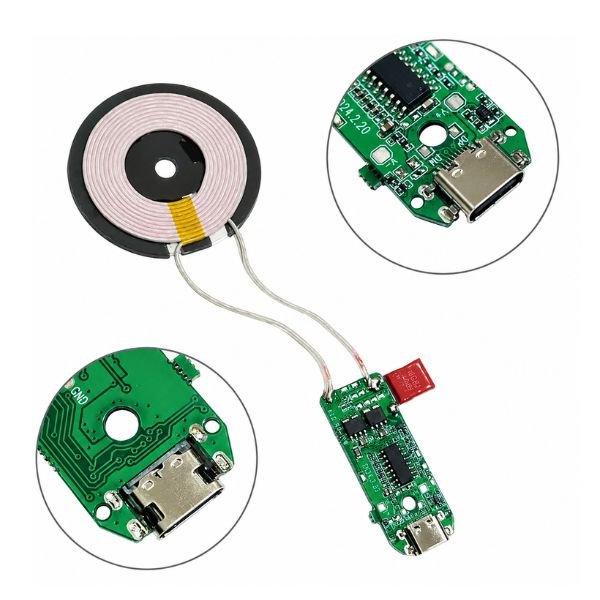

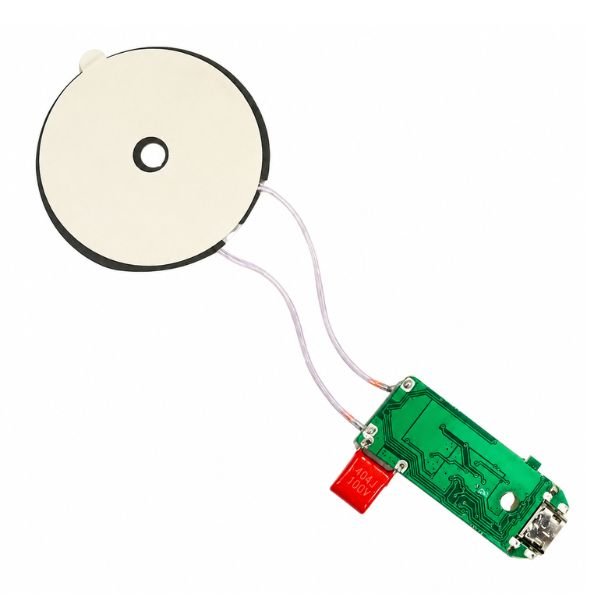

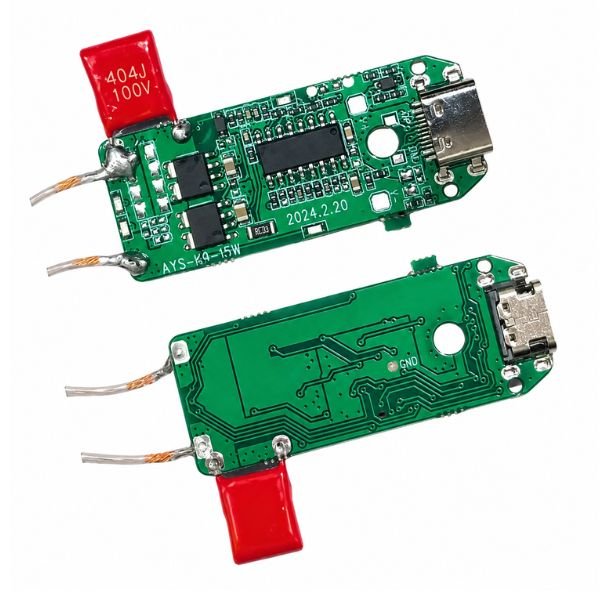

15W Fast Wireless Charging Transmitter Module Type-C

The 15W Fast Wireless Charging Transmitter Module with Type-C connector is a compact wireless power transmitter coil board that sends charging power through the air to a compatible wireless charging receiver — so a device with a matching receiver coil placed on top of or near this transmitter charges without any physical cable connection. This wireless charging module is the transmitter side of a wireless charging system, accepting 5V or 9V DC input through a Type-C connector and transmitting up to 15W of power wirelessly across a gap of up to 10mm in open air, or through a solid partition of up to 5mm thickness such as a wooden desk surface, a plastic panel, or a 3D-printed enclosure wall.

The wireless charging coil type c’s 40mm coil diameter is compact enough to embed inside a custom charging pad, mount under a desk surface, or fit inside a project enclosure — making it the right module for builders who want to create a clean, cable-free charging surface where all the wiring is hidden and the device charges simply by being placed in position. The 15w wireless charger module’s Type-C input supports both standard 5V USB charging adapters and 9V fast-charge PD adapters, so the input power source is flexible depending on what is available in the build.

The 15w wireless charger module type c’s ability to transmit through a 5mm solid partition means the coil can sit flush beneath a thin surface with no visible hardware on top — creating a completely hidden wireless charging spot inside furniture, a project box, or a custom dock. This wireless charging module is ideal for embedded wireless charging pad.

Related Product:

• Checkout Fast Charging Module PD65W

Features:

• 15W wireless output powers fast charging receiver builds efficiently
• Transmits through 5mm solid partition for hidden in-surface installation
• 40mm coil fits inside custom enclosures and DIY charging pads
• Type-C input accepts 5V standard and 9V fast-charge PD adapters
• 10mm open-air transmission gap for flexible receiver placement

Technical Specifications:

Applications:

• Wireless charging pad with coil embedded under wooden desk surface
• builds hidden wireless charger inside 3D-printed enclosure
• STEM project for 15w wireless charger module Type-C charging demo
• Custom wireless charging dock for Qi receiver-equipped wearable device

Package Includes:

• 1 x Fast Wireless Charging Transmitter Module Board
