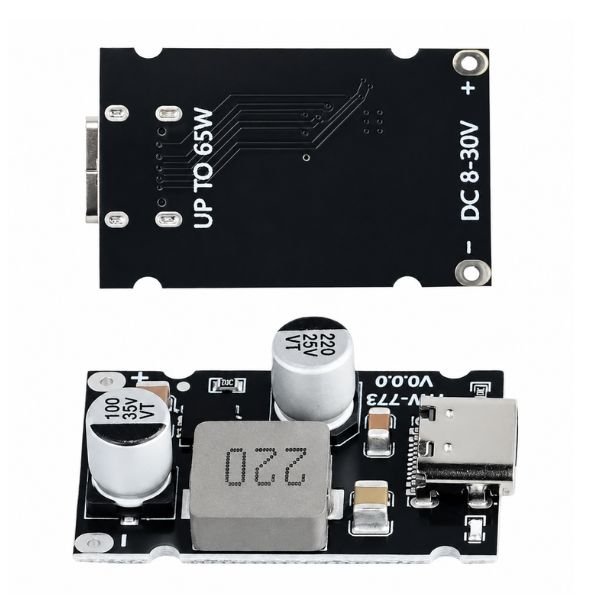

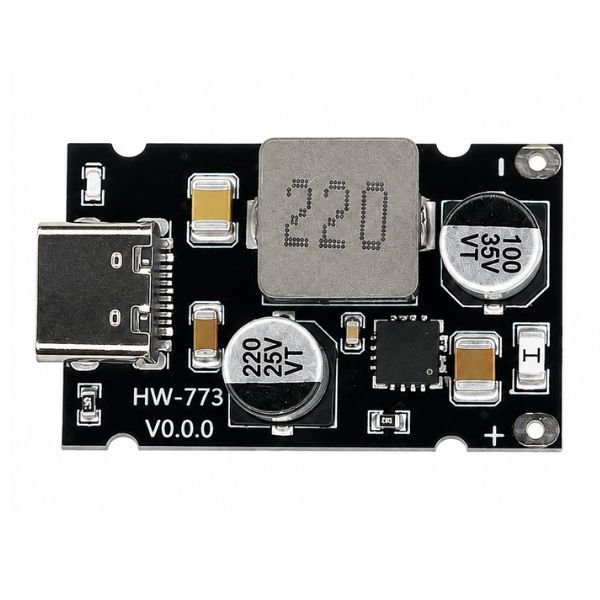

Fast Charging Module PD65W – C Type

The Fast Charging Module PD65W with Type-C is a compact 65W USB-C fast charging circuit board that provides the complete charging output stage for a custom-built fast charger — so instead of buying a finished charger, a maker or engineer can embed this module inside a custom enclosure, project box, or product housing and have a full 65W PD fast charging output through a USB-C port. This charging module differs from a PD trigger decoy module in an important way — the PD trigger decoy requests a voltage from an existing charger, whereas this pd65w fast charging module is itself the charging circuit that provides the 65W output, making it the right choice for builders who want to create their own charging device from scratch.

The pd65w charging module supports PD3.1 and QC3.0 fast charging protocols and outputs five selectable voltage levels — 5V, 9V, 12V, 15V, and 20V — automatically negotiating with the connected device to deliver the correct voltage for maximum charging speed. The fast charging module’s 2mm board thickness and 33×20mm footprint make it particularly suitable for integration into slim enclosures, multi-port charging stations, and compact power delivery builds where board height is a constraint alongside the need for high output power.

The fast charger module’s Type-C output interface is compatible with laptops, phones, tablets, and any PD or QC-capable device, making it a versatile charging circuit for multi-device custom charging builds. Available from StemVolt, delivering genuine electronics modules with trusted quality.

Related Products:

• Checkout Fast Wireless Charging Transmitter Module

Features:

• Complete 65W charging circuit for embedding in custom enclosures
• PD3.1 and QC3.0 protocol support for wide device compatibility
• Five output voltage levels: 5V, 9V, 12V, 15V, 20V auto-negotiated
• 2mm thin PCB integrates into slim enclosures and compact builds
• Compact footprint suits multi-port charging station builds

Technical Specifications:

Applications:

• Custom 65W USB-C fast charger built inside DIY project enclosure
• pd65w charging module in multi-port charging station
• For fast charging module PD3.1 protocol demonstration
• Laptop charging circuit integration in custom portable power bank build
• fast charger module for USB PD3.1 fast charging protocol lab

Package Includes:

• 1 × Fast Charging Module PD65W
