PDC004-PD 12V PD Decoy Module

The PDC004 PD Decoy Module is a compact USB Power Delivery trigger board that negotiates with a USB-C PD-compatible charger to request and lock a fixed 9V output — without requiring any microcontroller, code, or manual configuration — by using the PDC004 IC to perform the USB PD handshake automatically the moment a PD charger is connected to the Type-C input port. The pdc004 decoy module converts any standard USB-C PD charger into a 9V DC power source with up to 5A output current, providing up to 45W of clean regulated power for projects that need more than the standard 5V USB output but want to use the convenience and availability of USB-C PD chargers rather than a dedicated bench power supply.

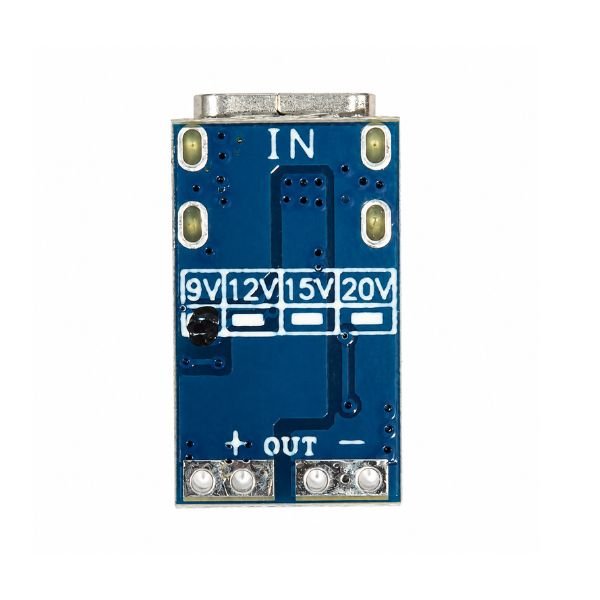

The type-c pd module measures just 19×11mm — small enough to embed directly into a project enclosure, power distribution board, or custom PCB — and outputs the negotiated 9V on solder pads that connect directly to the project’s power rail. The usb pd decoy module works with any USB-C charger that supports the USB Power Delivery standard at 9V, which covers most modern 18W and above PD chargers. Available from StemVolt. This Power Delivery Decoy Module is ideal for Arduino ESP32 bench power 9V project supply portable power and STEM electronics power delivery builds.

Related Products:

• Checkout USB-C PD Trigger Decoy Module

Features:

• Automatic PD handshake — no microcontroller needed for 9V negotiation
• Up to 5A output — up to 45W from USB-C PD charger
• 19mm×11mm compact size — embeds directly in project PCB
• Works with any PD charger — 18W and above USB-C standard
• Fixed 9V output — stable voltage from variable USB-C PD supply

Technical Specifications:

 Applications:

• Powering Arduino project from USB-C PD charger with pdc004 module
• Maker builds usb pd decoy module as compact bench power
• Use project for pdc004 pd 9v USB Power Delivery trigger demo
• ESP32 IoT device powered from USB-C PD charger via decoy module
• Type-c pd module for USB PD protocol negotiation lab build

Package Include:

• 1 x PDC004-PD 12V PD Decoy Module
