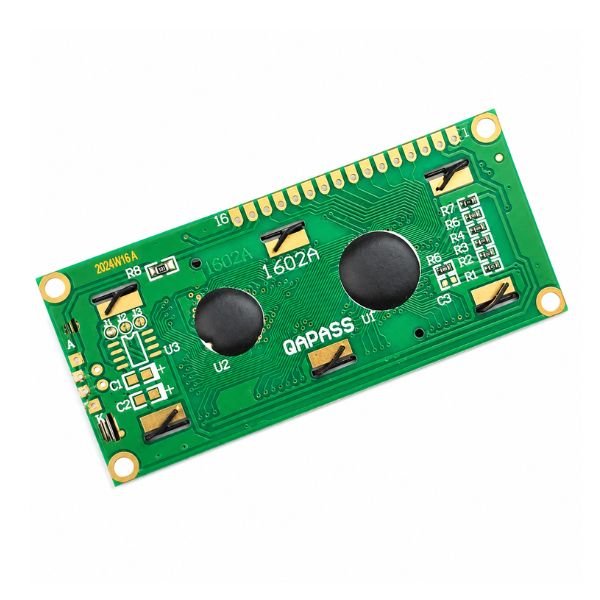

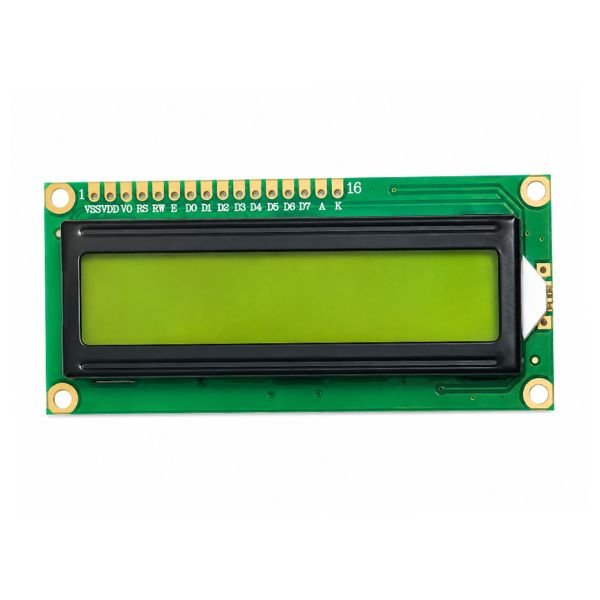

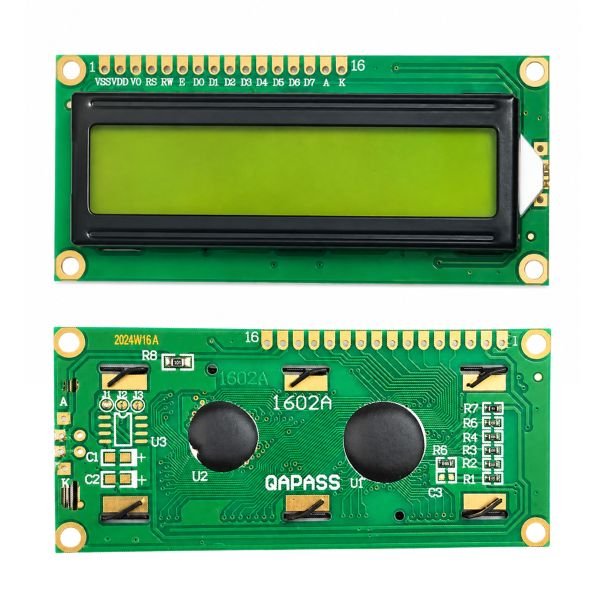

The 1602 LCD Display Module Green is a versatile and reliable display commonly used in electronic projects and embedded systems. It features 2 rows and 16 characters per row, offering a clear black-on-green display for text and data. With a built-in HD44780-compatible controller, it easily interfaces with Arduino, Raspberry Pi, and other microcontrollers using just a few pins. Operating at 5V DC, it’s perfect for DIY makers, students, and engineers who need an affordable and easy-to-use display solution.
Related Products:
-
20×4 LCD Display Green
-
0.96″ Blue OLED Display Module
Applications:
-
Arduino and Raspberry Pi projects
-
Robotics and automation systems
-
IoT dashboards and sensor displays
-
DIY makers and college electronics labs
Specifications:
| Parameter | Details |
|---|---|
| Model | JHD162A |
| Display Format | 16 Characters × 2 Rows |
| Controller | HD44780 or Equivalent |
| Display Type | Character LCD |
| Character Size | 5 × 7 Pixel Matrix |
| Display Color | Black Text on Green Background |
| Operating Voltage | 5V DC |
| Interface | Parallel Interface (Single Row) |
| Backlight | Yellow-Green |
| Operating Temperature | -20°C to +70°C |
| Dimensions | Approx. 80mm × 36mm × 10mm |
Features:
-
16×2 character display with bright green backlight
-
Adjustable contrast via control pin
-
Clear documentation on pin connections
-
Durable and long-lasting for repeated use
Package Includes:
-
1 × 1602 LCD Display Module Green
FAQ:
Q1. What is the use of the 1602 LCD Display Module Green?
A1. It’s used to display data or text output from Arduino, sensors, and other embedded projects.
Q2. Is this display compatible with Arduino and Raspberry Pi?
A2. Yes, it’s fully compatible with Arduino, Raspberry Pi, and other microcontroller platforms.
Q3. Can I adjust the display contrast?
A3. Yes, you can easily adjust the contrast by varying the voltage at the contrast control pin.
