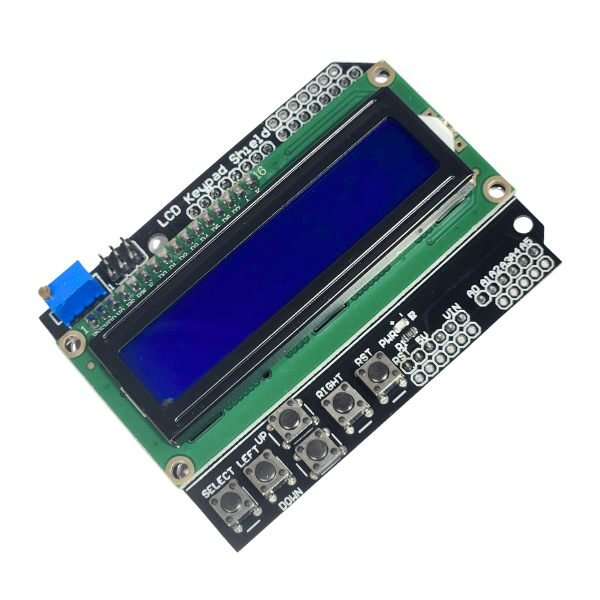

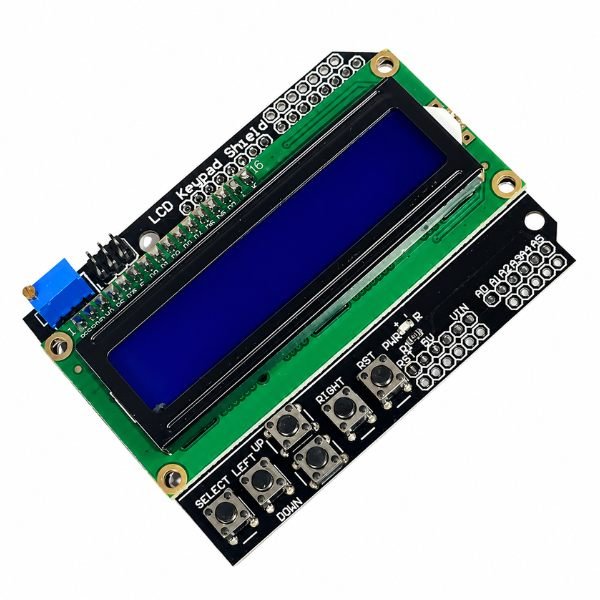

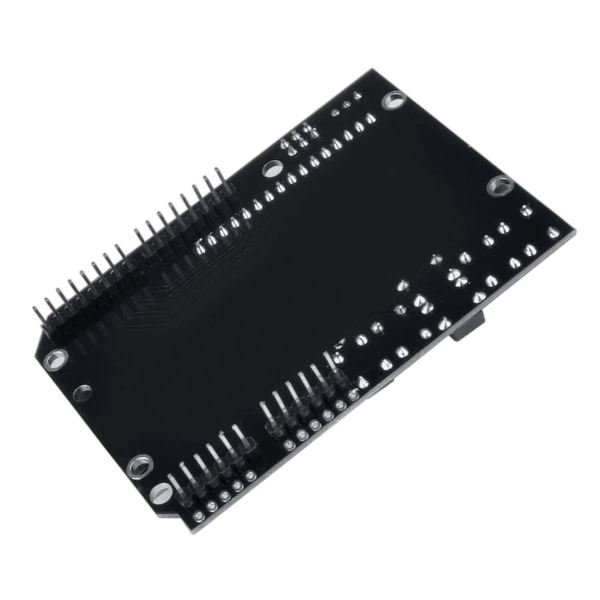

16×2 LCD Arduino Keypad Shield Module

The 16×2 LCD Arduino Keypad Shield Module is a plug-on display and input shield that combines a 16-character by 2-line LCD display with Up, Down, Left, Right, and Select navigation buttons in a single board that mounts directly onto Arduino Uno, Mega, and Leonardo without any wiring. The lcd 16×2 keypad shield uses digital pins D4 to D9 for the parallel LCD data and control lines, and reads all five navigation buttons through a single analog pin using a resistor ladder network — leaving the remaining Arduino pins fully available for other sensors and peripherals.

The arduino keypad shield is programmed using the standard LiquidCrystal library in the Arduino IDE, which is included by default — no additional library download is required for basic text display. The lcd keypad shield pinout maps RS to D8, Enable to D9, and data pins to D4 through D7, with A0 used for all button inputs through different resistor-divided voltage levels. One practical trade-off: because all buttons share a single analog pin, only one button can be detected at a time. Simultaneous multi-button presses are not supported by the analog multiplexing design — this is standard for all resistor ladder keypad shields of this type.

The non-obvious advantage of the 16×2 lcd shield format over connecting a standalone LCD module with jumper wires is reliability — the shield’s direct pin contact eliminates loose wire connections that cause display flickering during robot movement and vibration. The 16×2 lcd shield price makes this one of the most cost-effective ways to add a display and navigation interface to any Arduino project. The arduino keypad shield is used in Indian college labs for sensor data display, menu-based project interfaces, and digital voltmeter builds. Available from StemVolt, this unit is suitable for engineers working on Arduino display applications and practical user interface electronics projects.

Related Products:

• Explore the Display Module

Features:

• 16×2 LCD display shows 32 characters across two rows simultaneously
• 5 navigation buttons on single A0 pin via resistor ladder network
• Adjustable backlight brightness via onboard potentiometer for ambient conditions
• D4 to D9 pin usage leaves remaining Arduino IO pins available
• Compatible plug-and-play on Arduino Uno Mega and Leonardo boards directly

Technical Specifications:

 Applications:

• 16×2 LCD Arduino Keypad Shield used for sensor data display project
• College project uses lcd 16×2 keypad shield for digital voltmeter display
• Arduino menu system uses arduino keypad shield for project parameter selection
• Temperature logger uses 16×2 lcd shield for DHT22 real-time data display
• Robot uses keypad shield for on-board speed and direction display panel

Package Includes:

• 1 x 16×2 LCD Arduino Keypad Shield Module
