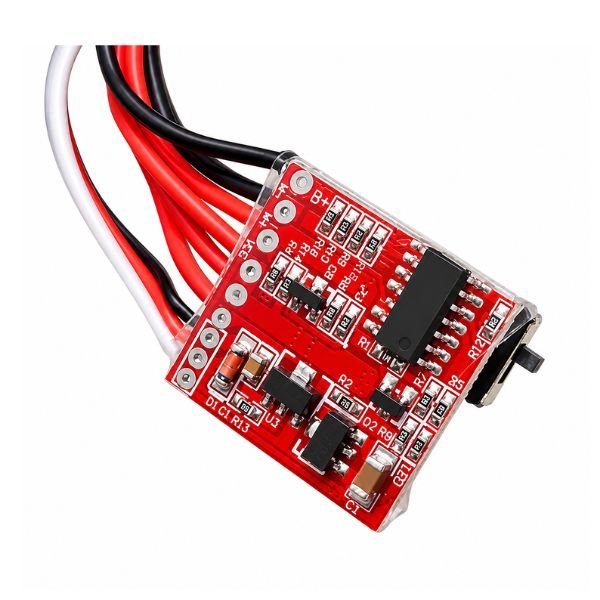

The 20A Brushed ESC Electronic Speed Controller delivers 20A continuous and 25A maximum burst current with 3V to 9V operating voltage, LiPo 2S battery input, 2kHz driver frequency, and pre-soldered wire connectors for immediate installation. Unlike the PWM speed controller modules and H-bridge driver boards covered separately that accept digital control signals from a microcontroller, this 20a brushed esc is specifically designed to accept a standard RC PWM servo signal — the 1000-2000 microsecond pulse width signal output by RC receivers and Arduino servo libraries — making it the correct choice for RC-style vehicle control and servo-signal-driven robotics builds.

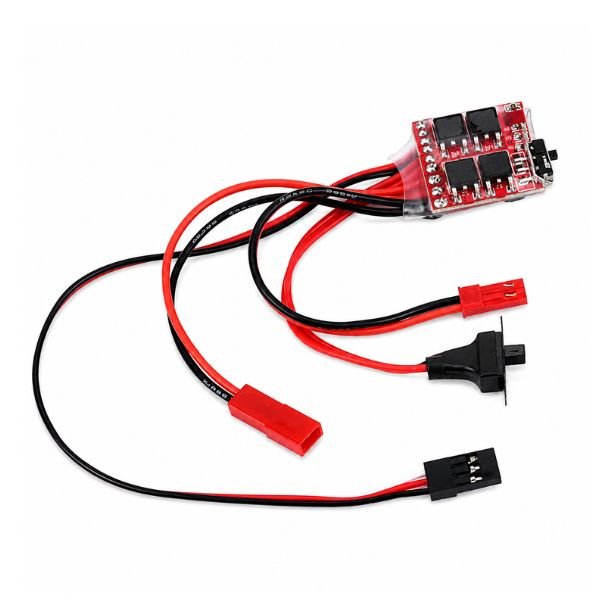

The esc 20a for dc motor’s 20A continuous and 25A burst ratings make it capable of handling the high current surges that brushed DC drive motors in RC cars and wheeled robots draw during acceleration and obstacle resistance, where a standard PWM module or H-bridge driver would exceed its current limit. This esc speed controller’s pre-soldered wire connectors mean the battery, motor, and control signal leads are already terminated and ready to connect without soldering, saving setup time in RC vehicle builds. Sometimes associated with ESCs refers to a different brushless ESC type — this esc electronic speed controller specifically drives brushed DC motors, not brushless three-phase motors.
this brushed esc for rc car requires a standard RC PWM signal input rather than a simple digital HIGH/LOW or analog voltage — microcontrollers like Arduino can generate this signal using the Servo library, but the setup differs from directly wiring a motor to a PWM driver module. StemVolt provide ESC, is suited for engineers and makers building RC-controlled brushed DC motor drive systems and speed-controlled robotics projects.
Related Products:
- Checkout Mini DC Dynamo MotorÂ
Features:
- 20A continuous / 25A burst for high-current brushed DC motors
- Accepts standard RC PWM servo signal from receiver or Arduino
- LiPo 2S battery compatible for RC vehicle power systems
- 3V–9V operating range suits standard RC brushed motor voltages
Technical Specifications:
 Applications:
- 20A Brushed ESC Electronic Speed Controller used for RC Projects
- Robotics uses esc 20a for dc motor for India wheeled robot drive
- RC boat uses esc speed controller for LiPo 2S propulsion control
- Combat robot uses esc electronic speed controller for drive wheel control
Package Includes:
- 1 × 20A Brushed ESC Electronic Speed Controller
