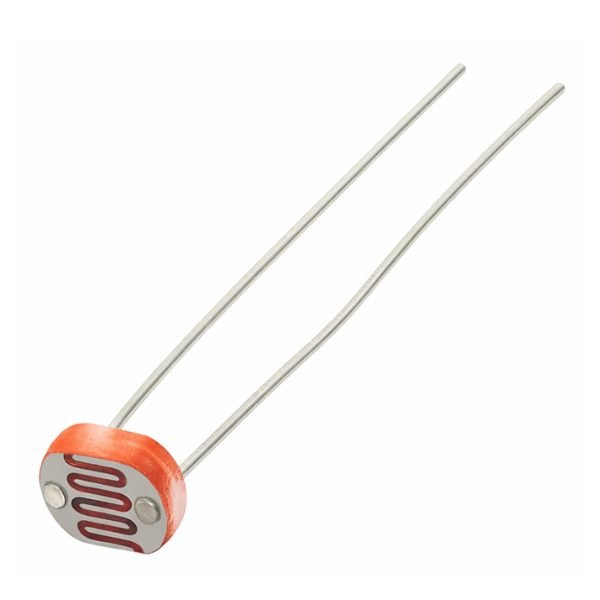

5mm LDR light dependent resistor sensor with two wire leads front view
LDR sensor 5mm diameter through hole component on breadboard close up
Click to enlarge
5mm LDR light dependent resistor sensor with two wire leads front view
LDR sensor 5mm diameter through hole component on breadboard close up

5mm LDR Light Dependent Resistor Sensor

(7 customer reviews)
SKU: SEN-LC014

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹7.00.Current price is: ₹6.00. (Inc. GST)

In Stock

In Stock

Add ₹999.00 to cart and get free shipping!
  • Light resistance typically falls between 10kΩ and 20kΩ under bright illumination conditions
  • Maximum voltage rating of 150V supports use in a wide range of sensing circuits
  • Fast response time of 20ms rise and 30ms fall enables reliable switching applications
  • Standard 5mm package fits directly into breadboards and through-hole PCB designs
Compare
Add to wishlist
12 People watching this product now!
Genuine Product
Quality tested
COD Available
Up to ₹5,000
Secure Payment
UPI, Card, Net
5 Day Returns
Hassle-free

Payment Methods:

Description

The 5mm LDR light dependent resistor sensor changes resistance based on how much light hits it. In bright conditions the ldr sensor resistance drops to 10 to 20kΩ, and in darkness it rises to several hundred kilohms. Place it in a voltage divider with a fixed resistor and connect to any Arduino or ESP analog pin to read light levels.

One honest limitation is that the light dependent resistor has a response time of 20ms to increase and 30ms to decrease, so rapidly flickering light sources may not read accurately. Students and hobbyists this 5mm ldr sensor for automatic lighting, alarm triggers, and line-following builds. Drop it into a breadboard, add a 10K pull-down, and read the analog pin.

Related Products:

Features:

  • Light resistance of 10 to 20kΩ gives a usable voltage shift across a divider circuit
  • Maximum voltage rating of 150V allows use in both low-voltage and mains-adjacent sensing circuits
  • Through-hole mount with 2-pin legs fits standard breadboard and PCB pads directly

Technical Specifications:

Specification Details
Mount Type Through Hole
Number of Pins 2 Pins
Diameter 5 mm
Light Resistance 10 kΩ – 20 kΩ
Maximum Voltage 150 V
Maximum Power 100 mW
Spectrum Peak Value 540 nm
Response Time (Increase) 20 ms
Response Time (Decrease) 30 ms

 Applications:

  • Night lamp project uses this to switch on a light when the room gets dark
  • 5mm LDR light dependent resistor sensor reads brightness and adjusts fan speed automatically
  • A light dependent resistor in a line follower reads surface reflection and steers the robot

Package Includes:

  • 1 x 5mm LDR Light Dependent Resistor Sensor
