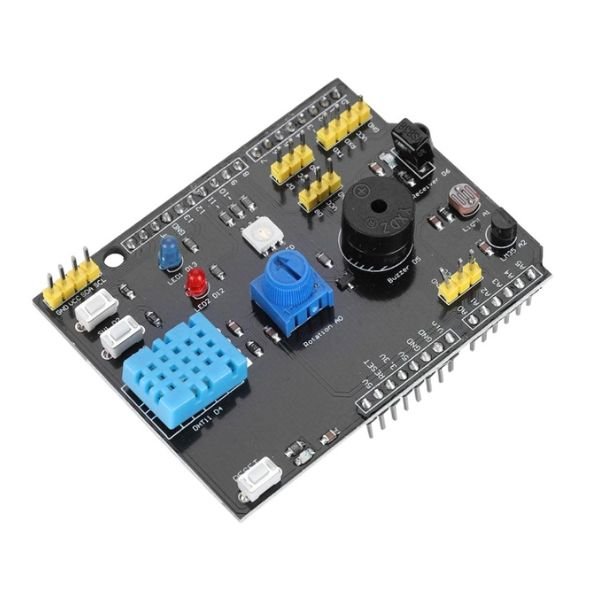

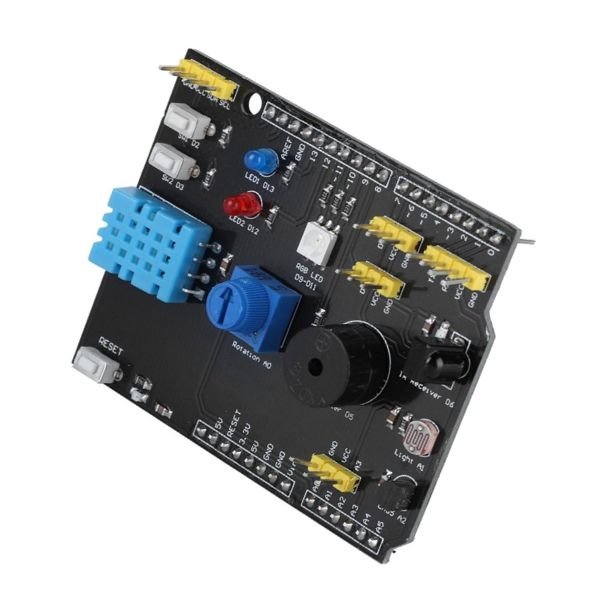

The 9-in-1 Multi-Function Expansion Shield for Arduino is a stackable development shield that brings together nine commonly used electronic components and input/output functions onto a single, well-organized PCB. Instead of wiring individual modules — a passive buzzer, LDR module, LM35D Sensor, Infrared Receiver, Rotary Potentiometer, there, a DHT11 sensor on a breadboard — this shield integrates with nine modules onto one board that plugs directly into an Arduino Uno R3 and Mega 2560 header stack.

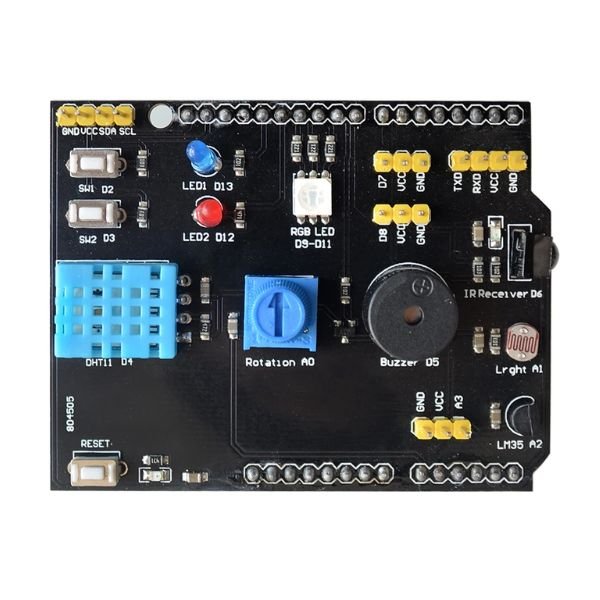

The shield includes LEDs for visual output, a passive buzzer for tone generation, tactile push buttons for digital input, a potentiometer for analog control, an IR receiver for remote signal decoding, and an onboard temperature sensor for thermal readings. All components are clearly labeled on the PCB, which makes it straightforward to identify pins and write corresponding Arduino sketches without constantly referencing a separate pinout diagram.
This kind of all-in-one shield is genuinely useful during the early stages of learning Arduino — rather than debugging loose jumper wire connections, you can focus entirely on writing and testing code. It is equally practical for developers who want to prototype a concept quickly, test a sensor response, or demonstrate a function during a presentation without building a full circuit.
Avaliable on StemVolt, this shield as part of its range of Arduino-compatible expansion modules for engineering students and project developers who value a clean, organised prototyping setup.
Related Products:
-
Explore the Arduino Compatible Boards for reliable development
- Check out the Arduino Shield and Accessories for IoT projects
Features:
- All-in-one shield design — nine components integrated on a standard Arduino-footprint PCB, eliminating the need for separate module wiring during prototyping
- Direct header stack mounting — plugs onto Arduino Uno, Mega 2560, or Leonardo without any jumper wires or breadboard connections
- Passive buzzer onboard — generate tones, alarms, and audio cues directly through PWM output
- IR receiver integrated — decode signals from standard IR remote controls
- Operating voltage 5V — draws power directly from the Arduino’s regulated supply
Technical Specifications:
| Specification | Details |
|---|---|
| Product Type | 9-in-1 Multi-Function Expansion Shield for Arduino |
| Compatible Boards | Arduino Uno and Mega 2560 |
| Integrated Components | Â LEDs, Passive Buzzer, Push Buttons, IR Receiver, Potentiometer, Temperature Sensor, LDR |
| Functions | Sensor testing, module interfacing, and Arduino prototyping |
| Connectivity | Direct plug-and-play pins for Arduino |
| Material | High-quality PCB with labeled ports |
| Operating Voltage | 5V (Arduino compatible) |
| Weight | Light weight |
Applications:
- Arduino programming practice — test digital output, analog reads, PWM, and serial communication
- Key integrated module testing — validate code behavior for buttons, LEDs, buzzer, and potentiometer in a single, stable hardware setup before moving to a custom PCB
- I2C interface development — use the shield’s sensor and output components alongside I2C displays
- Temperature monitoring experiments — read onboard temperature sensor data
- Light sensing applications — use the onboard LDR to build automatic brightness control, light-dependent switching
- Educational lab — ideal for college lab sessions where students need a reliable, repeatable hardware platform for Arduino projects
Package Includes:
-
1 × 9-in-1 Multi-Function Expansion Shield for Arduino
