Arduino Leonardo R3 Compatible Board | ATmega32U4 USB Microcontroller

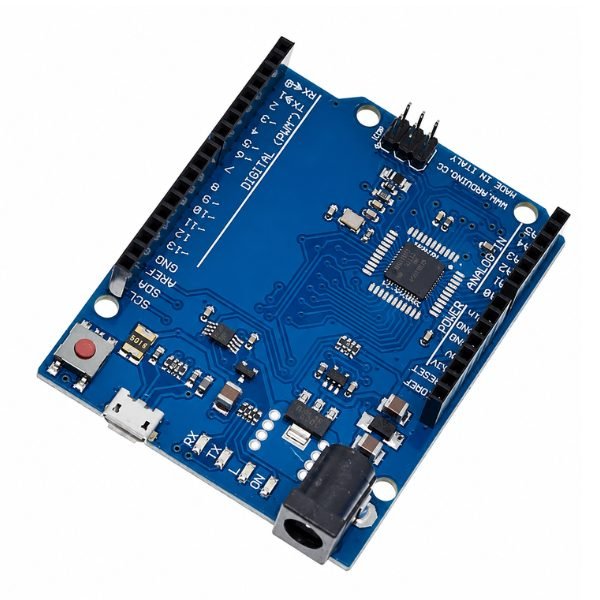

The Arduino Leonardo R3 Compatible Board is an ATmega32U4-based microcontroller board with 20 digital I/O pins, 12 analog inputs, 7 PWM outputs, 16MHz clock speed, 32KB flash, and 2.5KB SRAM. The key difference between the arduino leonardo board and the Arduino Uno is the ATmega32U4 microcontroller — it has a built-in USB controller, which allows the board to appear as a native USB device to any connected computer. This enables the Leonardo to function as a USB HID keyboard, mouse, joystick, or MIDI device without any additional hardware or library beyond the standard Arduino IDE.

The arduino leonardo r3 accepts 6V to 20V input and programs via the same Micro USB cable used for power. One practical note: because the ATmega32U4 handles USB directly without a separate USB-to-serial chip, the programming port and serial monitor both use the same USB connection. This means the Serial port in the Arduino IDE connects to the board’s USB interface — not a hardware UART — and the board must enumerate as a USB device before the serial monitor becomes available. First-time setup may require waiting two to three seconds after plugging in before the port appears.

The non-obvious advantage of the atmega32u4 microcontroller over the ATmega328P used in Arduino Uno is the ability to send actual keyboard keystrokes or mouse movements from code using Keyboard.print() and Mouse.move() commands — this enables arduino based projects like custom macro keyboards, accessibility devices, automated test input tools, and game controllers that are impossible on Arduino Uno without additional chips. The arduino board is popular in Indian college labs for project demonstrations.

Related Products:

• Check out the Arduino UNO R3 with Wi-Fi ATmega328P + ESP8266 NodeMCU Compatible Board

Features:

• ATmega32U4 built-in USB controller enables native HID device emulation
• 20 digital I/O pins with 7 PWM channels for motor and LED projects
• 12 analog inputs cover multi-sensor data acquisition applications fully
• 32KB flash stores larger sketches with HID library overhead included
• 6V to 20V input range works with barrel jack and Micro USB power

Technical Specifications:

 Applications:

• Arduino Leonardo R3 Compatible Board used as USB HID keyboard emulator
• College project uses arduino leonardo board as custom macro keypad device
• Game controller project uses arduino leonardo r3 HID joystick library
• Accessibility device uses arduino board to automate keyboard mouse input

• 1 x Arduino Leonardo R3 Compatible Board
