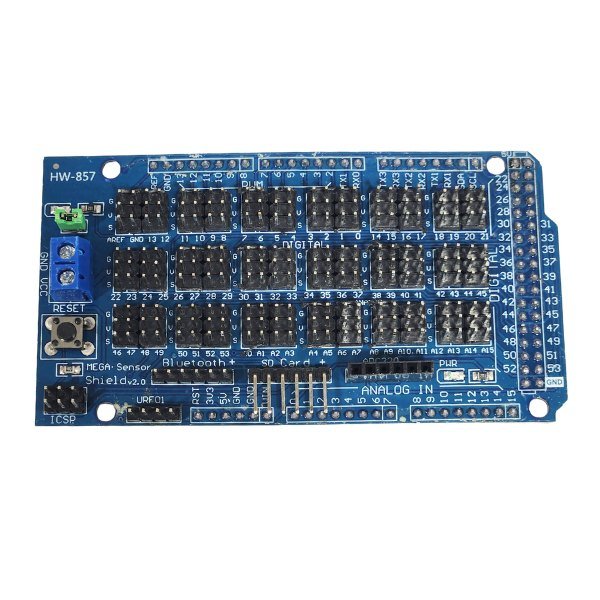

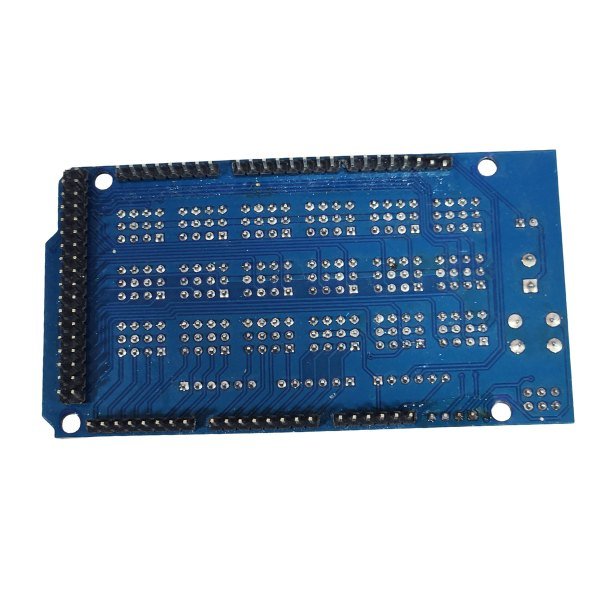

The Arduino Mega 2560 R3 Sensor Shield V2.0 is an expansion board built specifically to make the most of the Mega’s large I/O count. If you’ve worked with a Arduino Mega 2560 before, you know the challenge — 54 digital pins and 16 analog inputs are powerful on paper, but connecting multiple sensors, servos, and communication modules directly to those tiny headers is time-consuming and error-prone. This shield addresses that directly.
Every digital and analog pin is broken out into a three-pin header format: VCC, GND, and Signal, spaced at standard 2.54 mm pitch. Sensors with standard dupont connectors plug straight in.
The shield also handles a common power problem in servo-heavy builds. The onboard screw terminal accepts 6V to 12V from an external source, keeping servo current demand off the Arduino’s built-in regulator. A logic voltage jumper lets you switch between 3.3V and 5V depending on your sensor modules — useful 3.3V IoT sensors with standard 5V components on the board.
Communication interfaces are well thought out. Dedicated headers for Bluetooth modules, wireless RF, I²C, SPI, SD card, UART serial, and all onboard and clearly marked, making this shield a solid base for IoT project developers and robotics builders who need multiple peripherals running simultaneously.
Live on StemVolt, this shield required for engineers and college students who need a reliable, organised platform and projects to built around the Arduino Mega 2560.
Related Products:
-
Check out the Arduino Compatible Boards for IoT Projects
Features:
- Arduino Mega-Specific Design — Exposes all 54 digital I/O pins and 16 analog inputs of the Mega 2560, 1280, and ADK
- Dual Logic Voltage Selection — Onboard jumper switches VCC output between 3.3V and 5V, allowing safe connection of mixed-voltage sensor modules
- 32 Servo Motor Channels — PWM-driven servo headers support large multi-servo assemblies including robotic arms and humanoid platforms
- Communication Suite — Dedicated ports for UART, I²C, SPI, Bluetooth, APC220 RF, SD card
- Sensor-Ready Pin Format — Three-pin VCC · GND · Signal headers on every port eliminate breadboard dependency
- Standard 2.54 mm Pitch — Compatible with widely available dupont cables and standard Arduino sensor module
Technical Specifications:
| Specification | Details |
|---|---|
| Compatible Boards | Arduino Mega 2560, Mega 1280, Mega ADK |
| Digital I/O Pins | 54 pins (including 15 PWM outputs) |
| Analog Input Pins | 16 analog input pins |
| Logic Voltage (Selectable) | 3.3V or 5V via onboard jumper |
| External Power Supply | 6V – 12V via onboard screw terminal |
| Servo Channels | Up to 32 servo motor interfaces |
| Communication Interfaces | UART, I²C, SPI, Bluetooth, APC220 RF, SD Card, ICSP |
| Sensor Pin Format | VCC · GND · Signal on 2.54 mm pitch headers |
Applications:
- IoT Applications — Connect Bluetooth or RF modules through dedicated onboard
- 3D Printer and CNC Expansion — Use as a sensor interface layer in multi-axis CNC and 3D printing projects
- Environmental Monitoring project— Plug in multiple temperature, humidity, gas, dust, and UV sensors directly for multi-point data acquisition
- Educational Robotics Labs — Simplifies wiring in lab environments where students need to build and debug projects quickly
Package Includes:
-
1 × Arduino Mega 2560 R3 Sensor Shield V2.0
