DRV8833 2 Channel Motor Driver Module

The DRV8833 2 channel motor driver module is a dual H-bridge motor driver IC designed specifically for low-voltage motor applications where the TB6612FNG and L298N operate outside their efficient range. The DRV8833 Module starts working from 2.7V – low enough to drive motors directly from a single Li-Ion cell at 3.7V nominal without a boost converter between the battery and driver. Two independent H-bridge channels each handle 1.2A continuous with a 2A peak that covers the startup inrush current brushed DC motors draw before reaching steady-state rotation speed.

The drv8833 motor driver module compact PCB size fits inside miniature robot chassis, where larger driver boards physically do not fit alongside the battery and controller board. At 10.8V maximum supply, the module covers LiPo 2S packs at 8.4V and standard 9V battery, but is not rated for 12V operation planning 12V should confirm the supply stays within the 10.8V maximum under load.

The DRV8833 IC includes built-in overcurrent protection and thermal shutdown, which reduce the risk of permanent driver damage during motor stall events or wiring errors during development. The 2 channel motor driver module suits miniature wheeled robot, small robotic arm joints and compact mechatronic project drives. This module is available on StemVolt and is working on low-voltage motor control.

Related Product:

• Checkout L298 Dual DC Motor Driver Module

Features:

• 2.7V minimum supply drives motors directly from single Li-Ion cell voltage
• 2A peak per channel covers brushed DC motor startup inrush current safely
• Built-in overcurrent protection reduces driver damage risk during motor stalls
• Thermal shutdown protects DRV8833 IC during sustained overload conditions

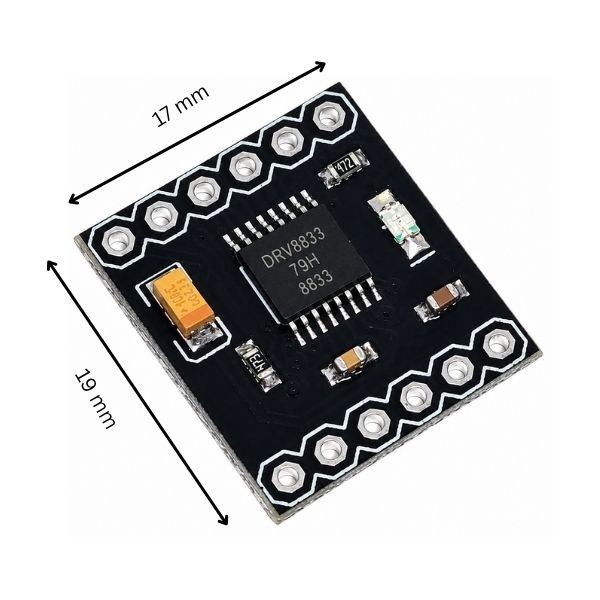

• 17 x 19 mm compact PCB fits miniature robot chassis without space conflict

Technical Specifications:

Applications:

• DRV8833 2 channel motor driver module drives two micro gear motors in miniature wheeled robot
• Motor driver controls small robotic gripper finger motors from LiPo battery pack
• Module suits compact line-following robot chassis powered by single Li-Ion cell
• 2 channel motor driver module drives micro servo-style DC motors in wearable robotics
• DRV8833 module controls two small DC fans in temperature controlled electronics enclosure

Package Includes:

• 1 x DRV8833 2 Channel Motor Driver Module
