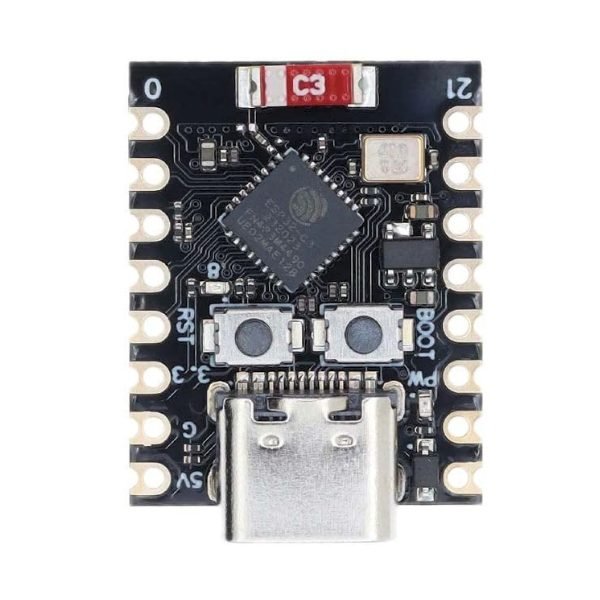

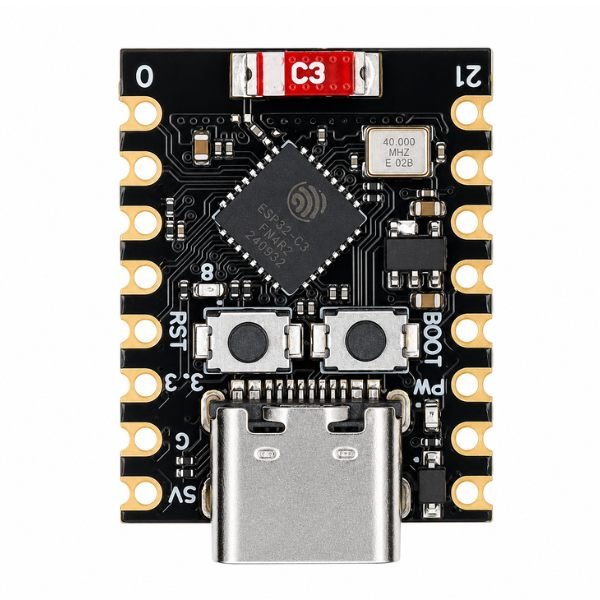

The ESP32-C3 Super Mini Development Board is a compact wireless microcontroller board built around the ESP32-C3FN4 chip. It is designed for developers and learners for WiFi and Bluetooth capability in the smallest possible board size without giving up essential peripheral access.

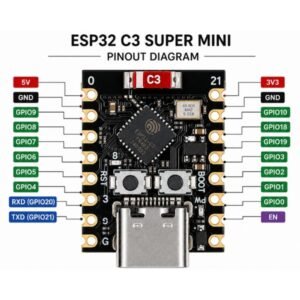

Unlike larger ESP32 variants, this low-cost microcontroller board uses a single-core 32-bit processor instead of the dual-core architecture according esp32 devkit v4 module. at 160 MHz and is more than capable of handling sensor reading, wireless communication, and protocol processing for most embedded applications. The board design keeps the footprint minimal while retaining GPIO access for I2C, SPI, UART, and ADC connections.
The esp32 c3 mini module carries 4MB of flash memory and 400KB of SRAM, which is adequate for running web servers, BLE peripherals, and sensor data pipelines. The esp32 wifi module functionality supports 2.4 GHz 802.11 b/g/n WiFi, while the Bluetooth 5.0 LE radio handles short-range device pairing and data exchange.
Powering and programming is done through Super Mini Development Board, which connects to the internal USB-to-serial bridge. The wide voltage input range of 3.3V to 6V gives flexibility for different power source choices in field-deployed projects.
Available through StemVolt, this board is a practical choice for microcontroller learners who need a low-footprint wireless board for compact project builds.
Related Products:
-
Explore the power and charging modules designed for development boards
Features:
- The ESP32-C3 Super Mini Development Board integrates WiFi and Bluetooth on chip
- 4MB flash storage supports firmware, file system, and over-the-air update partitions
- Micro USB interface handles both programming and 5V power input through a single cable connection
- Operating range of -40 to +85 degrees Celsius makes this board suitable for temperature-variable
Technical Specifications:
| Specification | Details |
|---|---|
| Microcontroller Board | ESP32-C3 SuperMini Development Board |
| Model No | ESP32C3FN4 |
| Flash Memory | 4 MB |
| Clock Frequency | 160 MHz |
| Voltage Rating | 3.3V to 6V |
| ROM Capacity | SRAM | 384 KB | 400 KB |
| USB Connector | Type C |
| Max Operating Current | 100 mA |
| Operating Temperature | -40 to +85 degrees Celsius |
Applications:
- WiFi and Bluetooth module projects — WiFi mesh nodes, and dual-protocol IoT endpoints
- esp32 microcontroller sensor nodes — deploy compact temperature, humidity, motion, and gas sensing units in wireless monitoring networks
- Use esp32 devkit v4 module compatible projects — use existing ESP32-compatible libraries and code
- Educational microcontroller projects — practical wireless board for microcontroller learners building IoT projects
Package Includes:
- 1 × ESP32-C3 Super Mini Development Board
